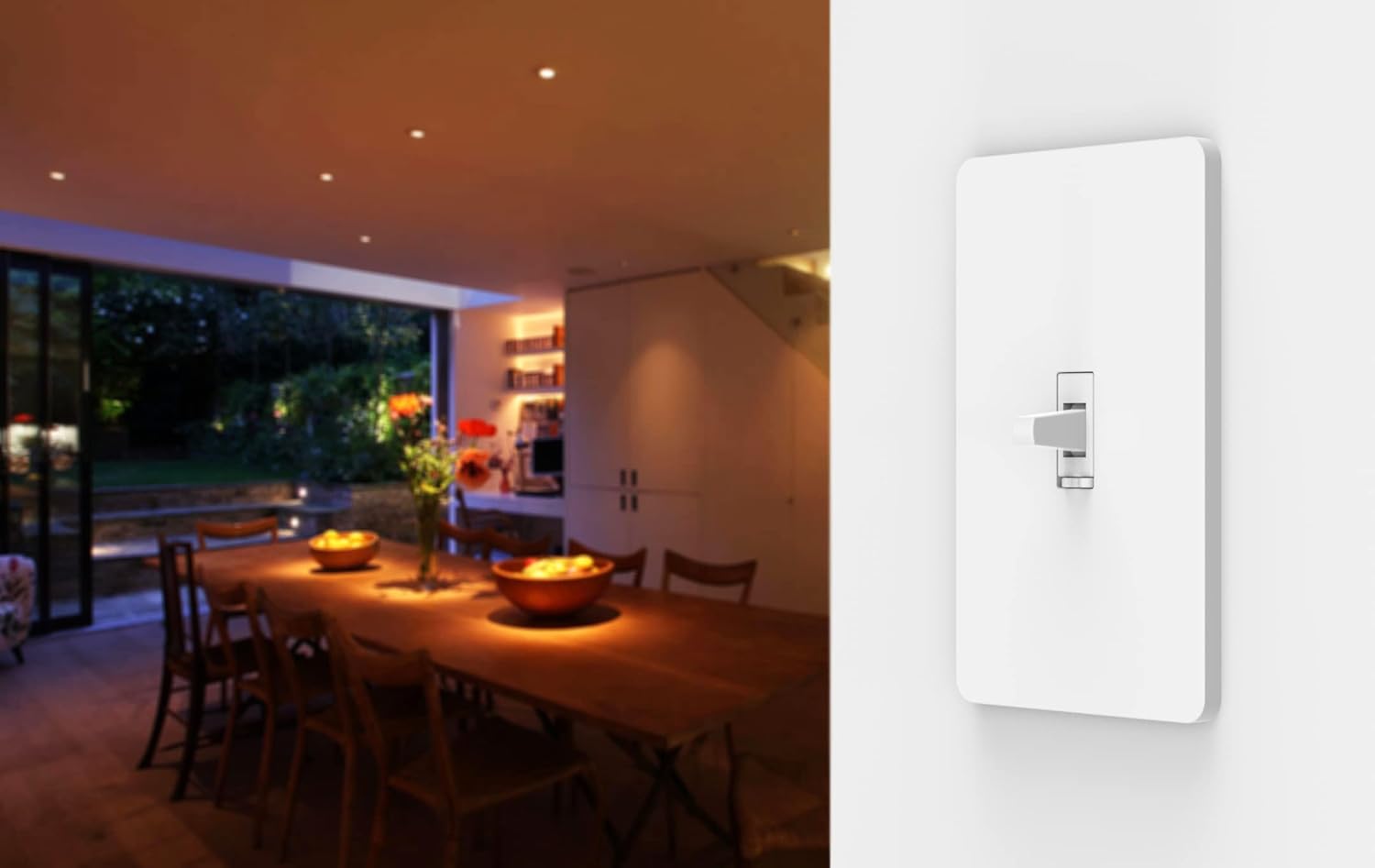

Zooz 800 Series Z-Wave Long Range Toggle Dimmer ZEN74, White | Direct 3-Way (No Add-On Switch Needed) | Z-Wave Hub Required

NOTE: Do NOT connect this switch to ceiling fans, motors, or home appliances. Use with lighting only.NEUTRAL WIRE REQUIREDSPECIFICATIONS:Model Number: ZEN74 800LRZ-Wave Region: US / MX / CAPower: 120 VAC, 60 HzMaximum Loads: 100W LED, 300W IncandescentZ-Wave Range: Up to 300 feet line of sight (no walls or obstructions, up to 1300 ft with Z-Wave Long Range)Operating Temperature: 32-104° F (0-40° C)Installation and Use: Indoor onlyWill it dim my bulbs?You'll be able to adjust brightness levels between 10% and 100% (with full on/off capability) for the following popular dimmable LED bulbs:Amazon BasicsBROADACREEEcosmartGEHaloSuncoUtilitech Recessed Dimmable LED'sUtilitech Dimmable LED'sDo NOT use with Feit, Luminus, or Lithonia bulbsManual Operation:Click the toggle up to turn on the light to the last brightness level. It takes around 1 second for the dimmer to reach full brightness. The ramp rate is adjustable if your hub supports advance setting input.Click the toggle down to turn off the light (with a fade-out effect and 1-second ramp rate).Press and hold the toggle up to add more brightness. Press and hold it down to reduce brightness.After power failure, the switch will automatically turn on to the last brightness level.In a 3-way installation, the secondary (mechanical switch) can only turn the light on or off. The secondary mechanical switch will always turn the light on only to the last brightness level. Dimming is only available from the primary Zooz switch and your Z-Wave software.Will it work with my smart speaker?You smart speaker is not a Z-Wave controller so you will need a compatible Z-Wave hub to control this switch with voice commands.

• WIRELESS BRIGHTNESS CONTROL: Manual or remote on/off and dimming control from your mobile device or computer (when included to a Z-Wave gateway controller - sold separately. Smart speakers are NOT Z-Wave hubs). Reports status instantly.
• NEW SIMPLE DIRECT 3-WAY: Patented solution for 3-way and 4-way installations! No add-on switch needed, no need to rewire the other boxes. Just wire the ZEN74 dimmer in the box with direct connection to power (it needs to replace an existing 3-way switch) according to the appropriate diagram. Works with mechanical 3-way switches (DON'T connect to other dimmers) as long as NEUTRAL is present.
• NEW 800 SERIES MODEL: Just 1.1" deep to easily fit in crowded and shallow boxes. 800 series Z-Wave chip for faster response time and better wireless range boosted by optimal antennae positioning. Long Range ready for ultra reliable direct hub-to-device communication (you need a LR hub to support this). Remembers and restores on/off status after power failure. Do NOT use as direct replacement for the ZEN24 model in 3-way set-ups, always follow the wiring in the manual.
• WORKS WITH YOUR HUB! Based on the universal multilevel command class - supported by most Z-Wave controllers (does NOT work directly with smart speakers). Lifetime tech support and 5-year extended warranty once registered.
• CHECK YOUR WIRING FIRST: Neutral wire is required to complete installation! Do NOT use the ZEN74 model as direct replacement for the older ZEN23 or ZEN24 switches - they wire differently in multi-point control set-ups, always follow the appropriate diagram or ask Zooz for help.
• SMOOTH DIMMING: Improved dimming capability for LED bulbs (scroll down for details, NOT compatible with Luminus, Lithonia, or Feit bulbs).
