YANHAO Digital LCD Voltmeter Ammeter AC 60-500V 10A 50A 220V Voltage Current Meter Tester Detector Current Transformer 1Pcs (Color : W3001 AC110-220V)

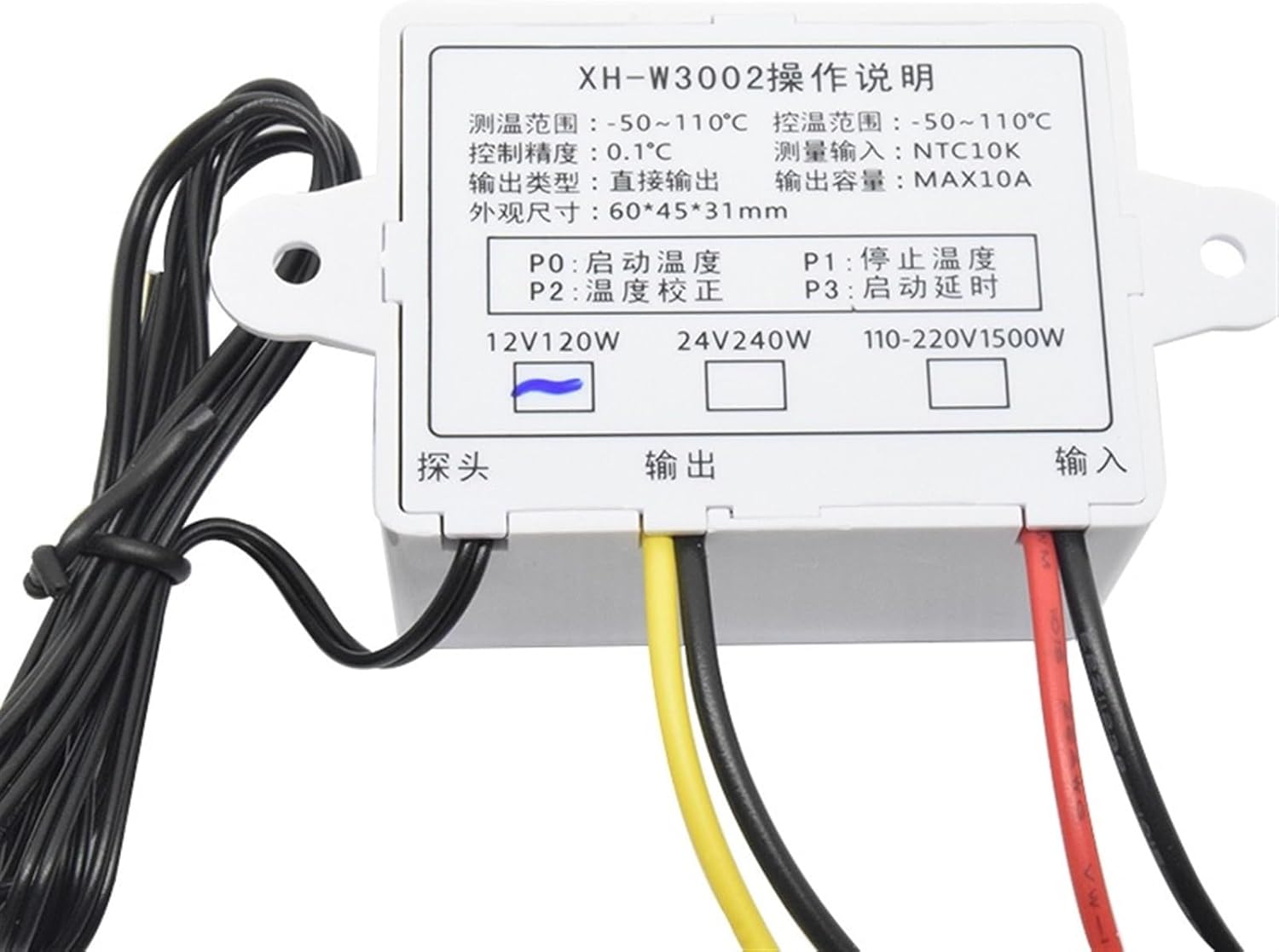

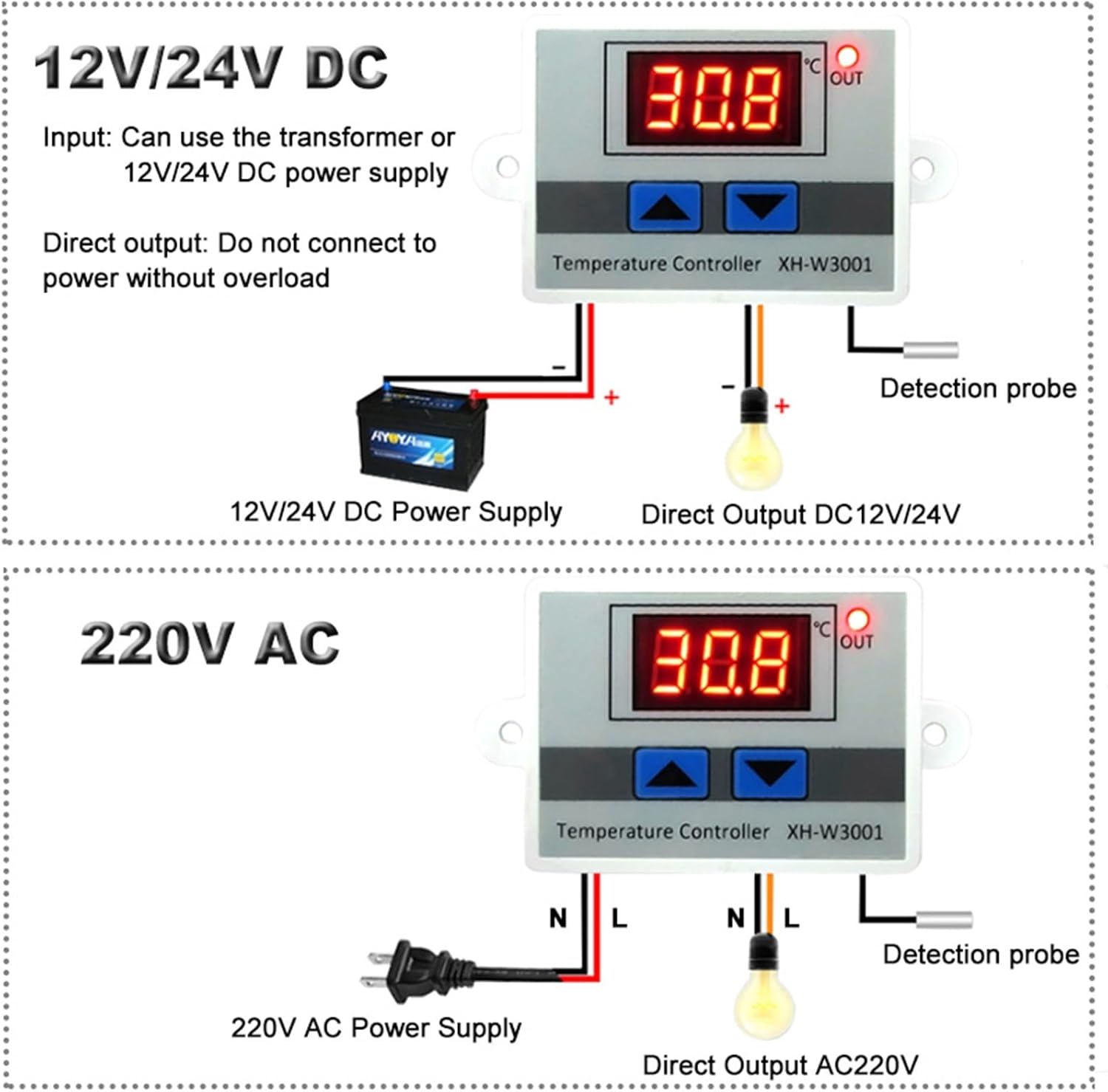

InstrumentationXH-W3001 W3002 Microcomputer Temperature Controller DC12V 24V AC110 AC200V Digital Thermostat Thermorelator Incubator Termometro Heating Cooling ControlDescription:Temperature measuring range: -50 ~ 110 Temperature control range: -50 ~ 110 Temperature measurement accuracy: ±0.2Temperature control accuracy: ±0.1Input measurement: NTC10K probe, cable length =1mInput power: 12VDC/24VDC/110-220VACOutput power: 12VDC/24VDC/110-220VACDimension: 60 * 45 * 31 mmItem NumberXGW3001Temperature Range-50~110Supply Voltage12VDC/24VDC/110-220VACControl Range-50~110Load Power120W/240W/1500WMeasurement Temperature Accuracy±0.2Measurement InputNTC10K Whaterproof Probe (1m)Temperature Control Accuracy±0.1Output TypeDirect OutputOutput Capacity10A Max.Mounting Pitch73mm (4mm aperture)Dimension60x45x31mmHow to Set XH-W3001Detecting TemperatureUP ButtonOutput IndicatorDown ButtonItem No.A. Set The Starting Temperature:Press the UP button once to show the starting temperature;Long push the UP button more than 3 seconds until the reading flashing, then push the UP or Down button to set the Starting Temperature Value.B. Set Stop Temperature:Press the Down button once to show the stop temperature;Long push the Down button more than 3 seconds until the reading flashing, then push the UP or Down button to set the Stop Temperature Value.C. Reset:When the power is on, long press the UP and Down button at the same time. The reading shows 888, and then the controller automatically jumps to the detection temperature.2. XH-W3002 Microcomputer Temperature ControllerItem NumberXG-W3002Temperature Range-50~110Supply Voltage12VDC/24VDC/110-220VACControl Range-50~110Load Power120W/240W/1500WMeasurement Te
