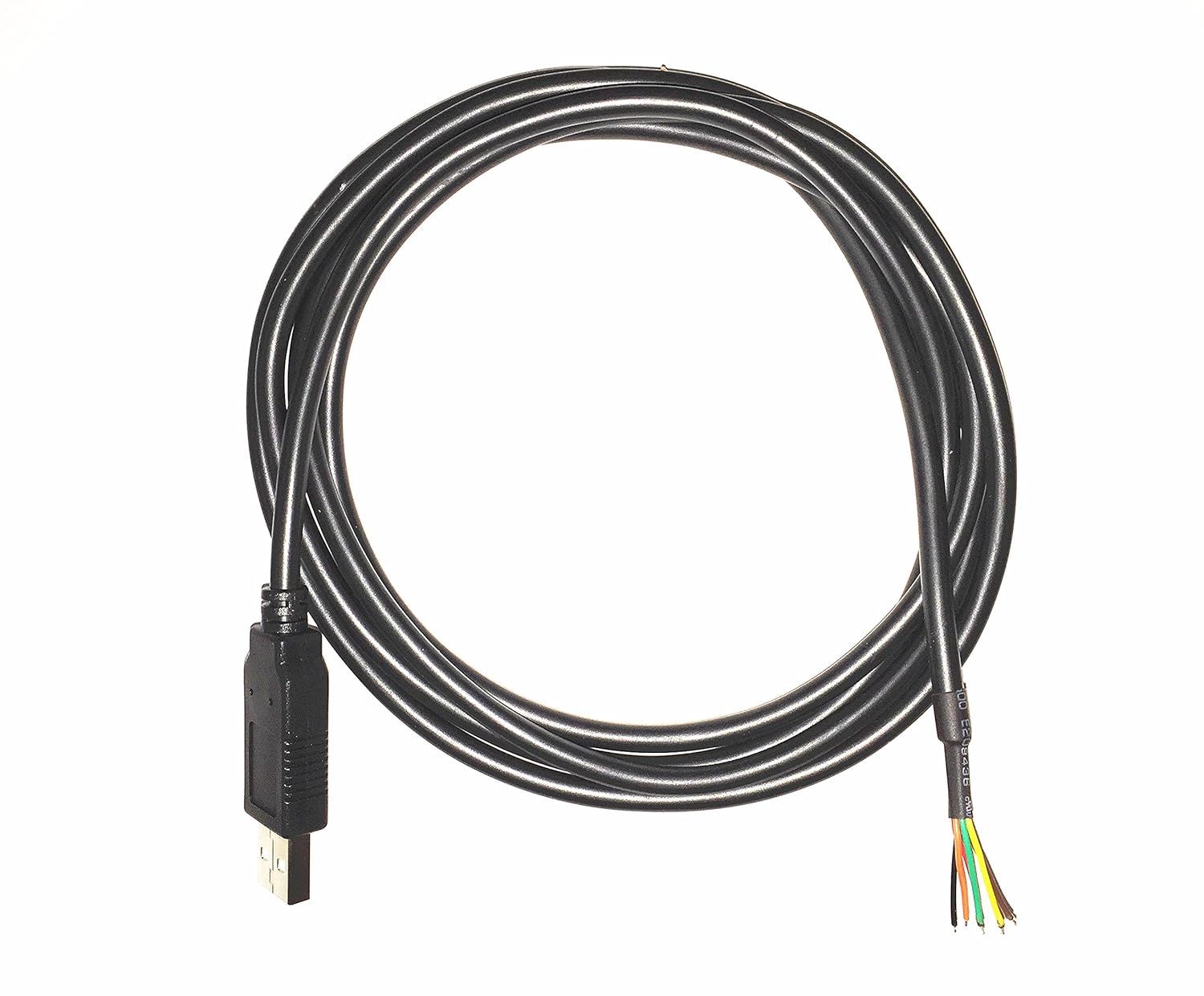

USB to 5v TTL UART Serial Cable, Wire end, 1.5m, Five(5) Pieces, EZsync009

Every EZSync cable is built to last for years with high quality industrial grade materials. The cable is compatible with all versions of Windows and Mac OS, including the latest Windows 11 and Mac OS (Sonoma 14.5)​ . The cable features six wire-ended outputs(5V, TTL): GND (Black), CTS# (Brown), VCC (Red), TXD (Orange), RXD (Yellow), and RTS# (Green). This versatile cable can be used for various applications, such as upgrading legacy peripherals to USB, interfacing Microcontroller UART or I/O to USB, connecting FPGA/PLD to USB, creating USB instrumentation PC interfaces, facilitating USB industrial control, and supporting USB software/hardware encryption dongles.

• USB to UART cable with +5V TTL level UART signals. Wire ended output allow most flexible connection
• Connect directly to a microcontroller UART or I/O pins. +5V TTL output allows external logic to be powered from the USB port
• Overmolded chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions
• 6 outputs provide Tx, Rx, RTS#, CTS#, VCC and GND. Data transfer rates from 300 baud to 3 Mbaud at TTL levels
• Replace MAX232 type level shifters allowing for direct connection of products to PC via USB
