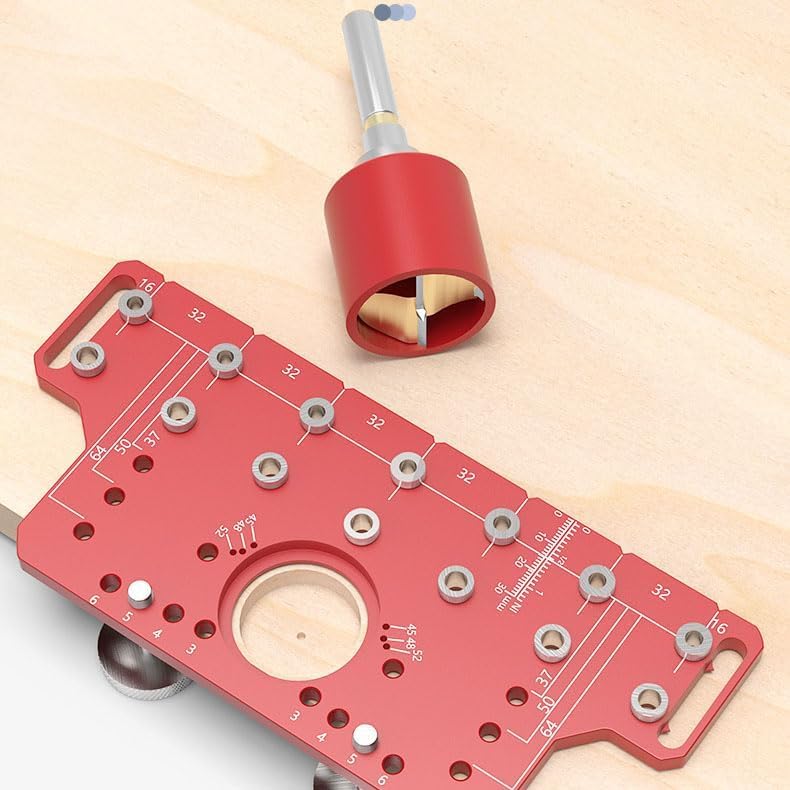

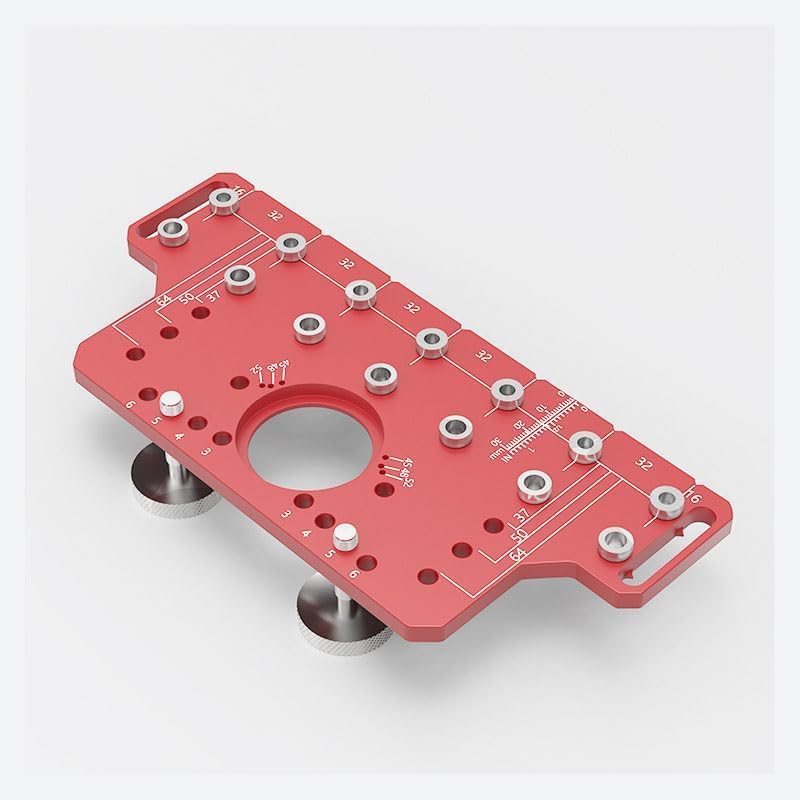

Shelf Hole Jig Concealed Hinge Jig 2 in 1 Shelf Pin Drilling Jig with Hole Drill Bits Self contained Clamping Cabinet Hardware Jig

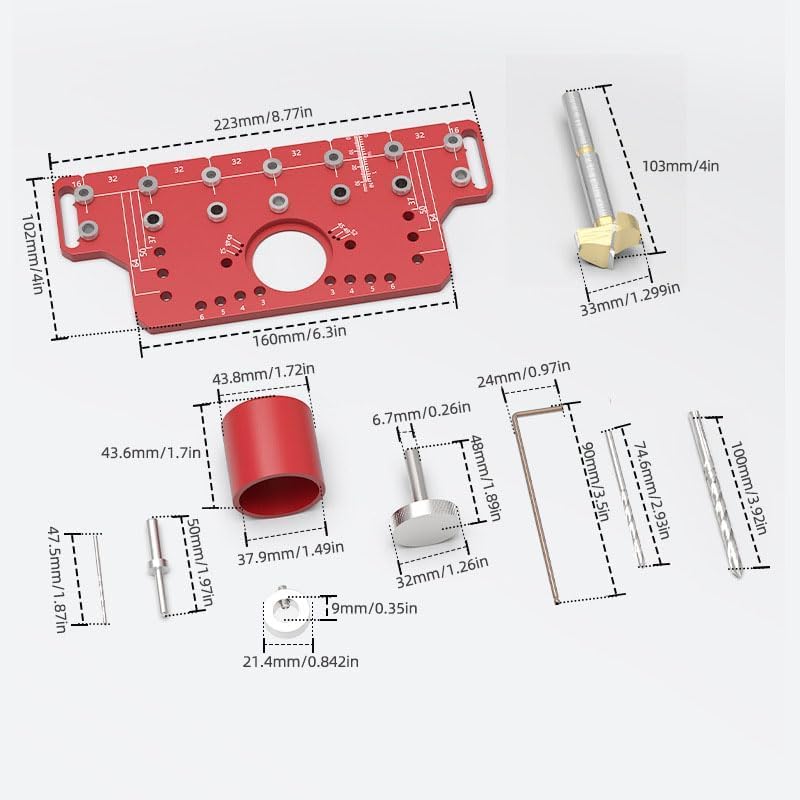

Specification: Item Type: Shelf Pin Hinge Jig Material: Aluminum alloy Use: Cabinet door hinge hole positioning 4 Sizes Hardened Steel Drill Bits: Approx. 6mm / 1/4in, 5mm / 0.2in, 2mm / 0.08in, 35mm / 1.38in Distance: Approx. 37mm / 1.46in, 50mm / 1.97in, 64mm / 2.52in Distance From Hole To Wood Panel : Approx. 3 ~ 6mm / 0.12 ~ 0.24in Hinge Screws: Approx. 48 x 6mm / 1.89 x 0.24in Approx. 45 x 9.5mm / 1.77 x 0.37in packing list: 1 x Hinge Drill Locator Main Body 1 x 35mm Hole Opener 2 x 2mm Drill Bit 2 x 5mm Drill Bit 2 x 1/4in Drill Bit 1 x Pin Rod 1 x Depth Positioning Ring 1 x Positioning Cover 2 x Positioning Clamp 2 x Wrench 1 x Hole Opener Storage Box 1 x User Manual

• 2 FUNCTIONS: Adopt 2 in 1 design, this tool is a combination of shelf pin jig and hinge jig functions. One tool can help you finish the whole cabinet installation
• WHAT YOU GET: This shelf pin jig come with 4 sizes of hardened steel drill bits: 1/4in(6mm), 5mm, 2mm, 35mm. Meets all your shelf pin hole size requirements at once. A stop collar is also included
• ACCURATE AND EFFICIENT: This shelf pin jig can accurately drill seven 5mm or 1/4in(6mm) shelf pin holes at 1‑1/4in distance in one quick pass. The included dowel pins help you continue drilling more shelf pin holes. 37, 50, 64mm distance can help you set up all different shelf installion distance
• ALL IN ONE: Cabinet hinge drilling templates are for the most common latent hinges in the United States. The distance from the 35mm hole to the wood panel is optional 3‑6mm. Including hinge screws 48x6 and 45x9.5mm.(with 2PCS 2mm drill bit)
• WIDE APPLICATION: All metal shelf pin and hinge jig is made of aluminum alloy material with friction resistant . Versatile and multiple mounting size options are designed to meet your common shelf pin holes and hinge mounting
