SCITOO Trailer Hub Assembly 5 Lug on 4.5 Bolt Pattern L68149 x L44649 Bearing fit for 3500lbs axle Galvanized Trailer 13/8×11/16 Brake Hub

Package Quantity:1x Zinc plated cotter key1x Tang washer1x Inner bearing1x Outer bearing1x . 1x Zinc Plated Cap with the removable plug 5x cone wheel lug nuts.1x Galvanized pre-greased Trailer HubParameter:Inner Bearing - 68149Outer Bearing - 446491.72 inch .1.98 inch Cap.5 on 4.5inch bolt pattern.fit For 3500lbInstallation Instructions:Step 1: Take away the existing cap, cotter pin, castle nut, washer and hub. Take away any remaining grease from spindle. Inspect For spindle For wear or damage.Step 2: Slide new hub onto spindle. Using a torque wrench, tighten the new castle nut to 30-40 foot-lbs. Turn hub to ensure proper bearing seating‚ Loosen the castle nut until loose enough to turn the castle nut with you fingers. Re-tighten the castle nut finger tight.Step 3: Install cotter pin through the hole in the spindle. If the hole is covered by the castle nut, loosen the castle nut to the nearest hole so that the cotter pin can be installed. The hub should rotate freely when spun by hand, and there should be no movement when the hub is pulled back and forth. Bend the legs of the cotter pin to ensure the cotter pin and castle nut will not loosen.Step 4: Install the cap with the cap installation tool. Use a mallet or hammer, only strike the cap tool and not the cap(Helpful hint):Place piece of wood over the cap tool.Step 5: Start all nuts by hand to prevent cross threading. Tighten the lug nuts in stages. Following the sequence and torque stages per your specific hub and wheel size. Wood block(not supplied)

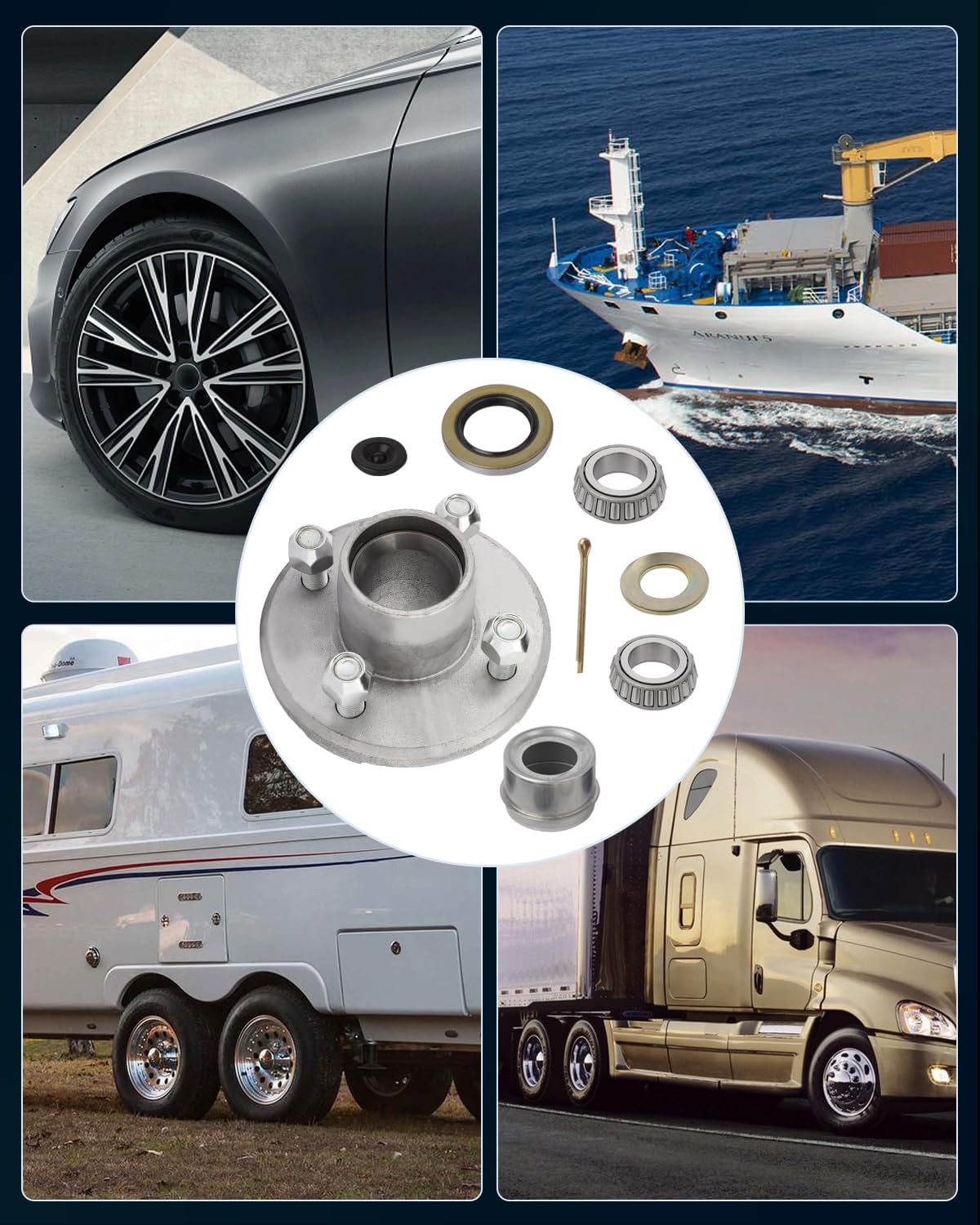

• [Fitment]:1x Hub 1x Inner bearing（L68149）1x Outer bearing （L44649）1x Seal 1x Cotter pin 1x Dust Cap 5x Lug Nuts 1x Flat Washers

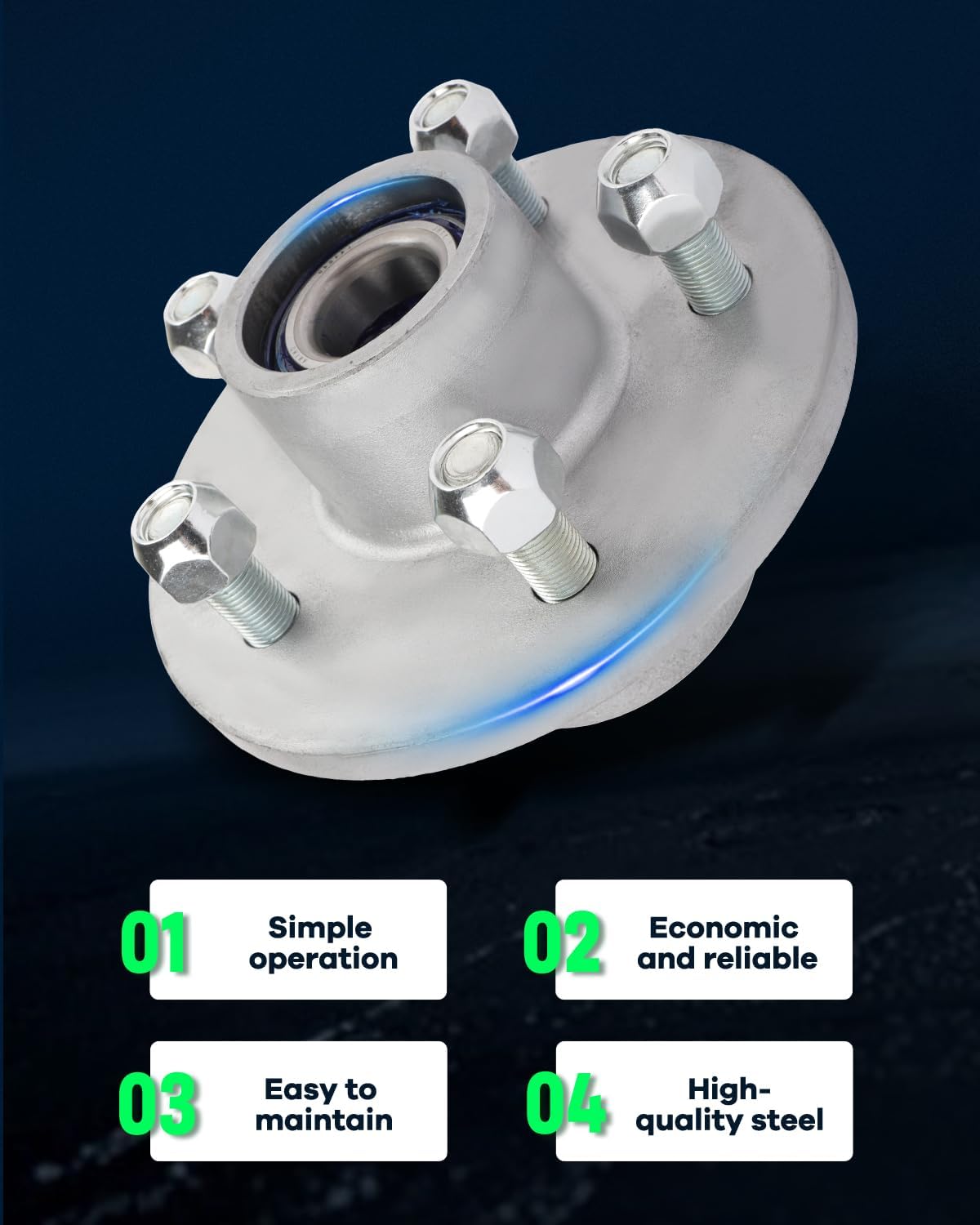

• [Hub Specifications]:Hub Specifications:5 Lugs,Wheel Bolt Pattern - 5 on 4 1/2 bolt pattern,fit for 3500lbs axle
• [Package include]:1x Zinc plated cotter key,Tang washer,1x Inner bearing,1x Outer bearing,1x Zinc Plated Cap with the removable plug,5x cone wheel lug nuts,1x Galvanized pre-greased Trailer Hub
• [Function]:Trailer Wheel bearing assembly play an integral role in keeping trailers rolling along. The trailer wheel hub assembly connects the trailer tires to the trailer axle and facilitates their spin
• [Note]:A potential cause For bearing failure is the castle nuts being over tightened. Castle nuts should be just slightly more than hand tight. If too tight this will put excessive weight on the bearings and could lead to premature failure. I suggest an inspection of the tires on the affected wheels
