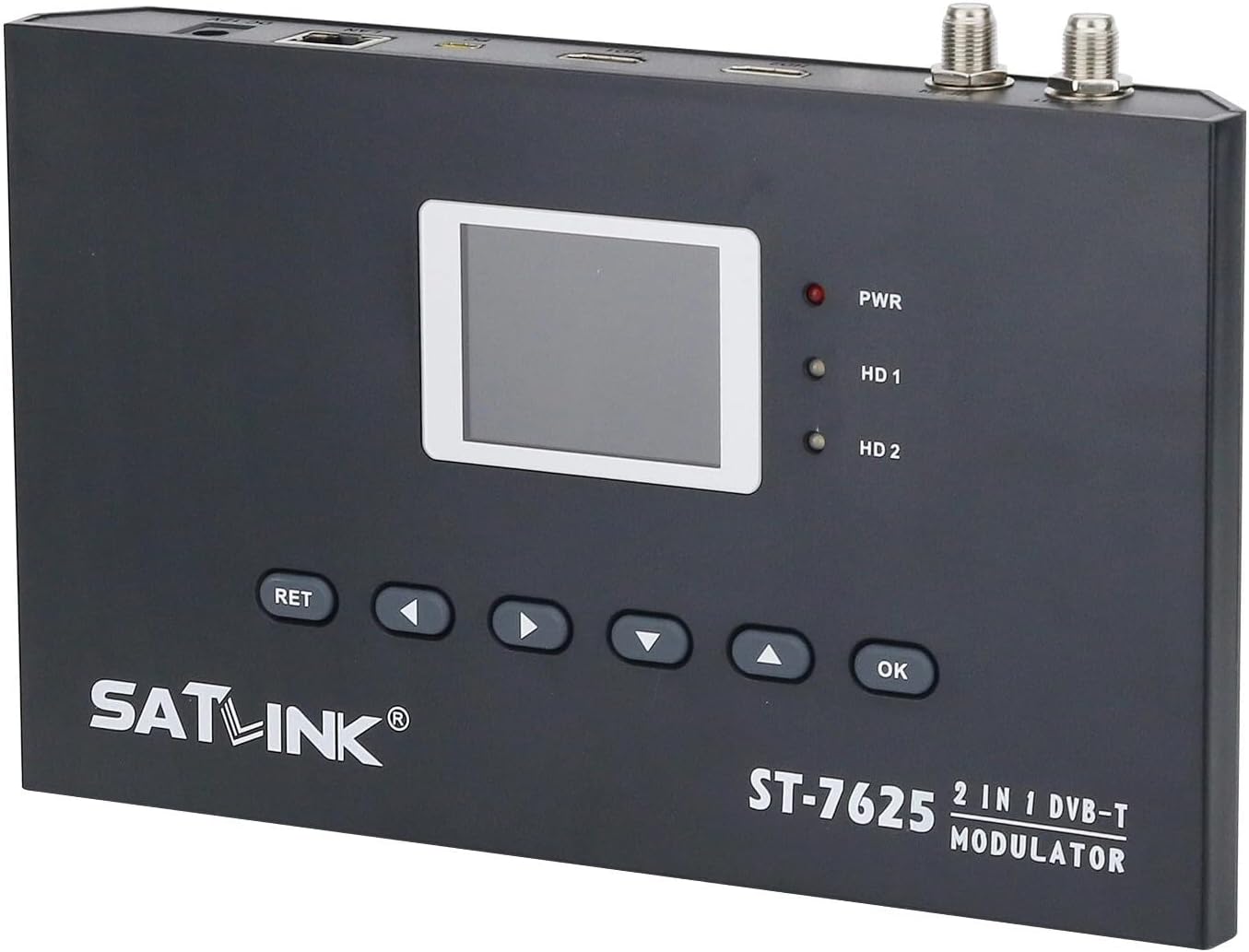

Satlink ST-7625 Digital Television DVB-T Modulator 100~860MHz MPEG-4 AVC/H.264 Modulating DVB-T RF Output

ST-7625 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out.SPECIFICATIONSVIdeo Input: 2 x HDMI type A receptacleAudio Input: 2 x HDMI type A receptacleEncodingVideo Resolution: 1080p @30p/25pVideo Compression: H.264/ AVCAudio Compression: MPEG-1 Audio layer II (ISO/IEC 11172-3)PID Setting: PMT/ Video/ Audio/ PCRPSI: NID/ ONID/ P.D.S./ TS IDLCN: At most 4 numbersService Name: At most 12 charactersGENERAL CHARACTERISTICSDimensions: 230×137×25mmPower Supply: DC 12V/1.5APower Consumption: 10 WOperation Temperature: 0 ~ +45°CMODULATIONTransmission Mode: 2K,8KGuard Interval: 1/4,1/8,1/16,1/32Code Rate: 1/2 , 2/3 , 3/4 , 5/6 , 7/8Constellation: QPSK,16QAM,64QAMOUTPUTStandard: DVB-T (ETSI EN 300 744)Frequency Range: 100~860MHzOutput Level: 70~100 dBuVBandwidth: 6, 7, 8 MHzMER: >36 dBConnector Type: ‘F’ FemaleLocal operation: 2.4inch LCD panel, control buttons

• Electronic attenuator; LCN (Logical Channel Number) support;
• Excellent modulation quality; User friendly configuration interfaces including 2.4-inch LCD with buttons;
• Upgrade by PC; Integration of H.264/AVC HD Encoder and DVB-T Modulator in a small rack mount system;
• Quad HD video inputs; Adopt multiple audio formats;
• 2 HD input and 1 DVB-T RF output; Bandwidth: 6/7/8MHz; Frequency range: 100~860MHz;
