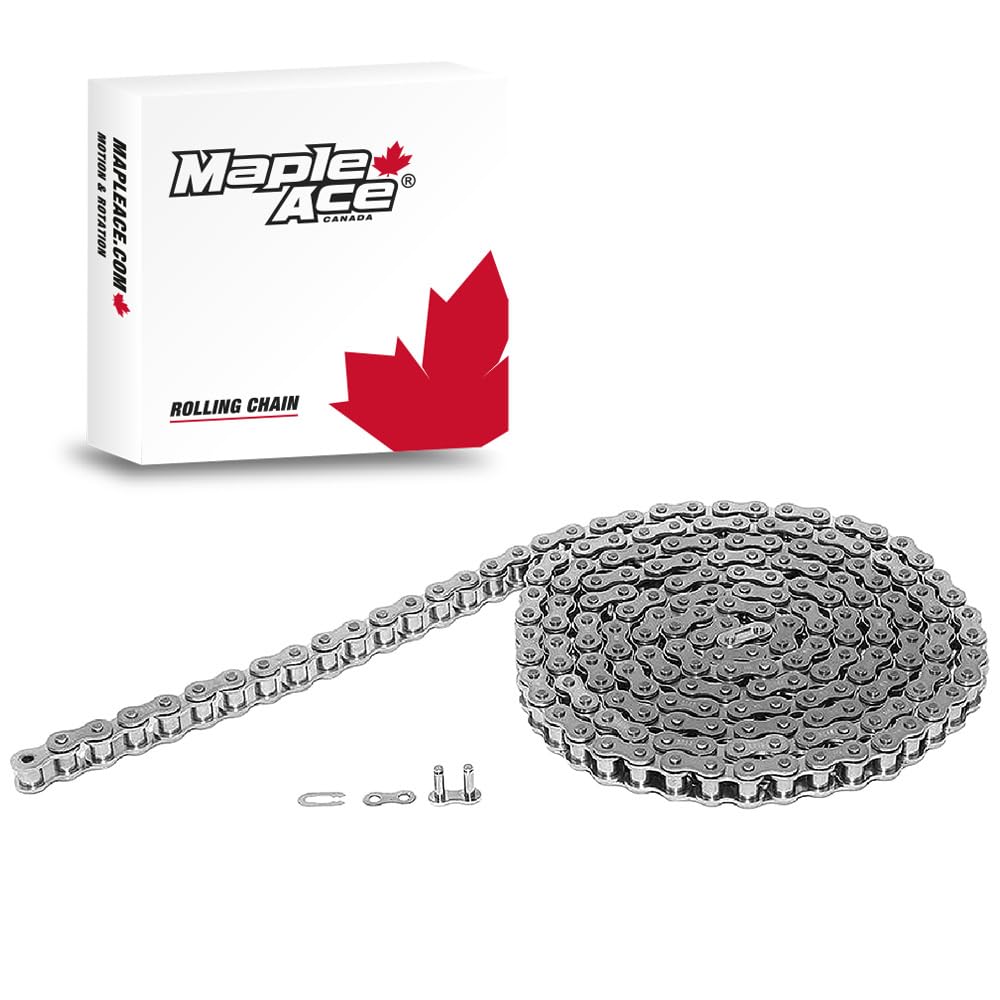

MAPLE ACE #41NP Nickel Plated Roller Chain 10 Feet Plus Connecting Master Link

Maple Ace Nickel Plated Roller Chains are developed to offer good wear and corrosion resistance. If your application may involve contact with food, please be aware that Nickel Plated Chains are not suitable. All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant. Higher tensile strength for superior impact resistance. Heat treatment to achieve ideal hardness. Every package contains a 10-feet chain and 2 connecting links. Additional connecting and offset links can be bought separately at our store. The chain can be cut to desired length using a Chain Breaker. - Specification: Item 41-1NP, ANSI Chain number 41-1NP, BS/ISO Chain number 085-1NP, Chain Length 10 ft Number of Links 239L, Number of Strands 1, Chain Pitch Metric 12.7 mm, Chain Pitch Inch 0.5 in, Roller diameter d1 max Metric 7.77 mm, Roller diameter d1 max Inch 0.31 in, Width between inner plates b1 min, Metric 6.25 mm, Width between inner plates b1 min Inch 0.25 in, Pin diameter d2 max Metric 3.58 mm, Pin diameter d2 max Inch 0.14 in, Pin length L max Metric 13.75 mm, Pin length L max Inch 0.54 in, Pin length Lc max Metric 15.00 mm, Pin length Lc max Inch 0.59 in, Plate height h2 max Metric 9.91 mm, Plate height h2 max Inch 0.39 in, Plate thickness T max Metric 1.3 mm, Plate thickness T max Inch 0.05 in, Ultimate Tensile Strength Q min 6.7 kN, Average Tensile Strength Q0 19.7 kN, Weight (kg/m) 0.41 kg, Weight (lbs/ft) 0.28 lbs, Material Carbon/Alloy Steel. - Interchange: - Application:

• 41 Roller Chain Nickel Plated is a 1/2 inch pitch ANSI Standard Roller Chain Single Strand
• Interchange to ANSI Chain No. 41-1NP, BS/ISO No. 085A-1NP, 41NP, RS41-NP-1, PHC 41-1NP
• Corrosion Resistant Nickel-plated Roller Chains are coated with a layer of nickel to enhance their properties. They are widely used in environments where corrosion resistance and improved aesthetics are important.
• Application: Food and Beverage Industry, Pharmaceutical and Medical Equipment, Printers, Copiers, Go-Kart, Bicycles, Motorcycles, Outdoor and Marine Applications, Garage Door Openers, Window Regulators, Packaging Machines
• Specializing in the Exclusive Production of Chains with High Performance and Long Life.
