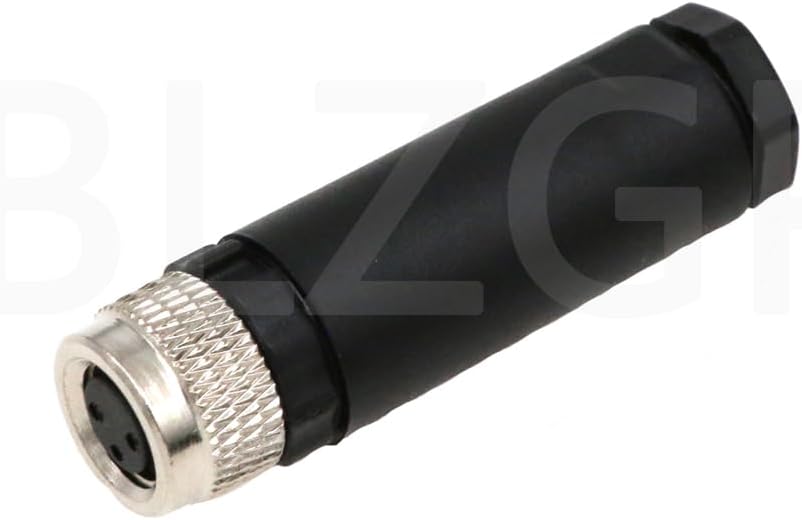

M8 3Pin Female Plug Electrical Connector Waterproof IP67 A Coding Field Wireable Aviation Assemblely Cable Unshiled Quick Connect Connector 1Pack

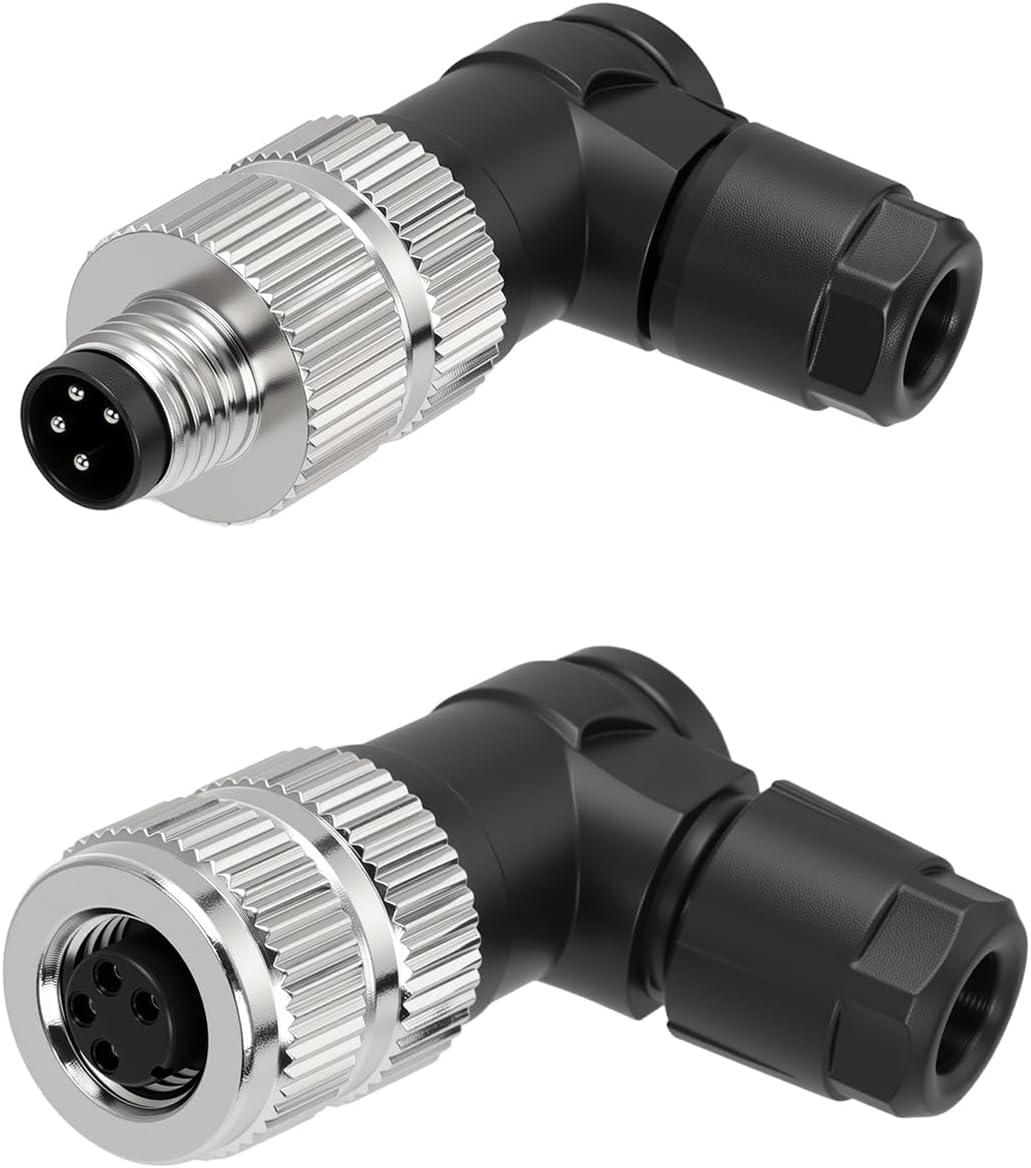

Key Features:Space-saving design:8mm diameter threaded coupling saves valuable panel space.Industrial durability:Metal or plastic housing withstands vibration and mechanical stress.Reliable sealing:IP67/IP68 rated versions available for harsh environments.Wiring options:Choose from pre-wired cables or field-wireable versions.Polarized versions:Available with keyed coding to prevent mismating.Product Series Details:The M8 series includes:M8 male/female straight connectorsM8 male/female right-angle connectorsM8 panel mount receptaclesM8 cable-to-cable connectorsAvailable in 3-pin, 4-pin, 5-pin,6-pin and 8-pin configurationsSpecifications:Current rating: 2A/4A (depending on configuration)Voltage rating: 30V/60V AC/DCContact resistance: ≤10mΩInsulation resistance: ≥100MΩOperating temperature: -25°C to +85°CMating cycles: ≥100 cyclesHousing material: plastic or metal

• M8 Connector Waterproof 3-pole 4-pole 5-pole 6-pole 8-pole A, B, D coding available with M8*1.0 screw locking circular connector.
• Rated Current：1.5A/2A/3A/4A.Rated Voltage：30V for 5/6/8 pin；60V for 3/4 pin.Protection level：IP67/IP68 waterproof.Contact Resistance：≤10mΩ.Mechanical Operation：>500 mating cycles.
• Screw/Nut Material：Brass with nickel plated.Contact Material：Phosphorus copper with gold plated.Temperature Range: -25°C ~ + 85°C.
• Easy quick connect and disconnect coupling;Shield and un-shield Version Available with metal or plastic housing.
• The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.
