LP16 Power Cable Connector M16 Reverse Mount Female Male Metal Socket for Automotive Machinery Outdoor Use IP68(2-Pin Plug)

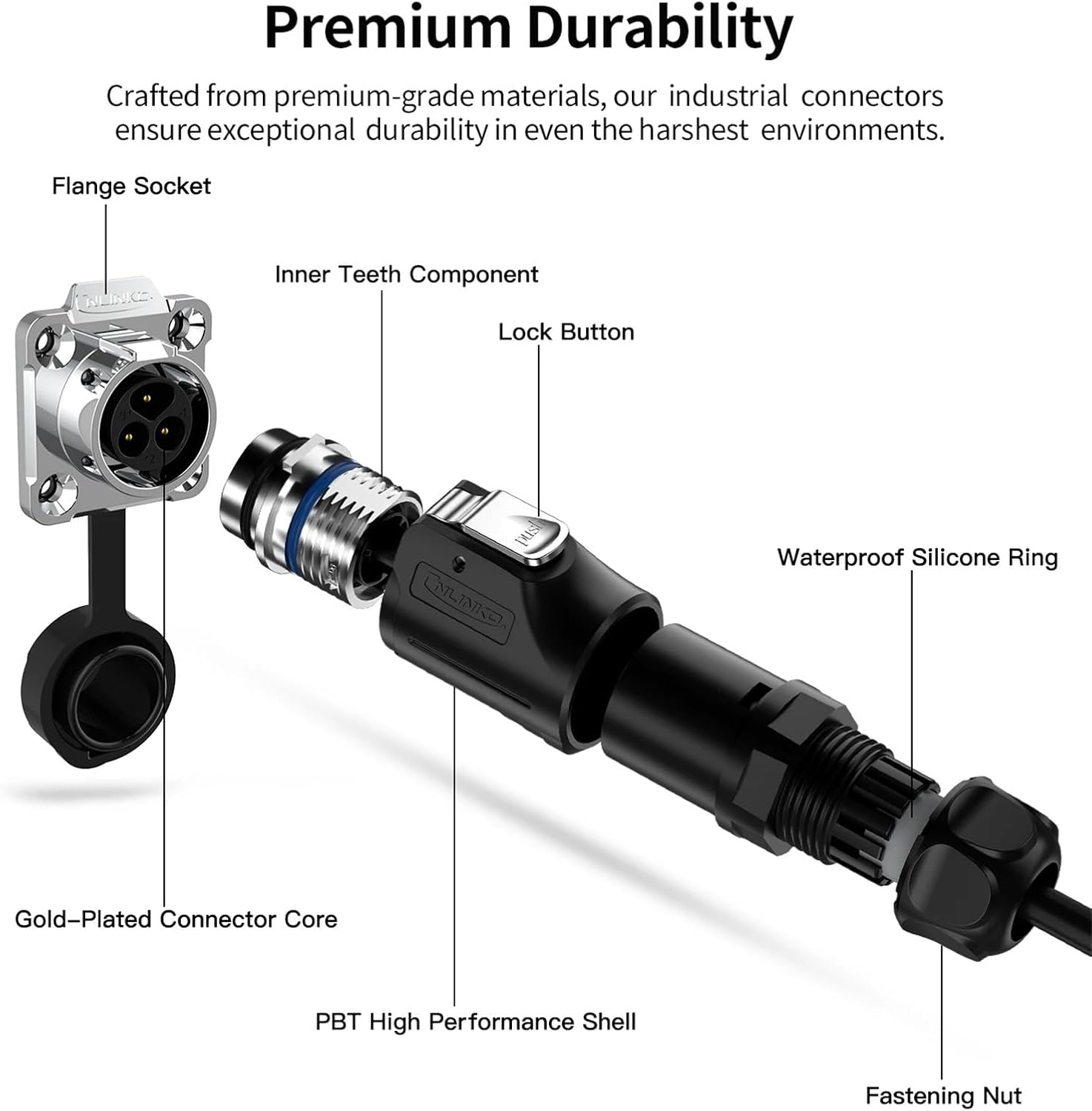

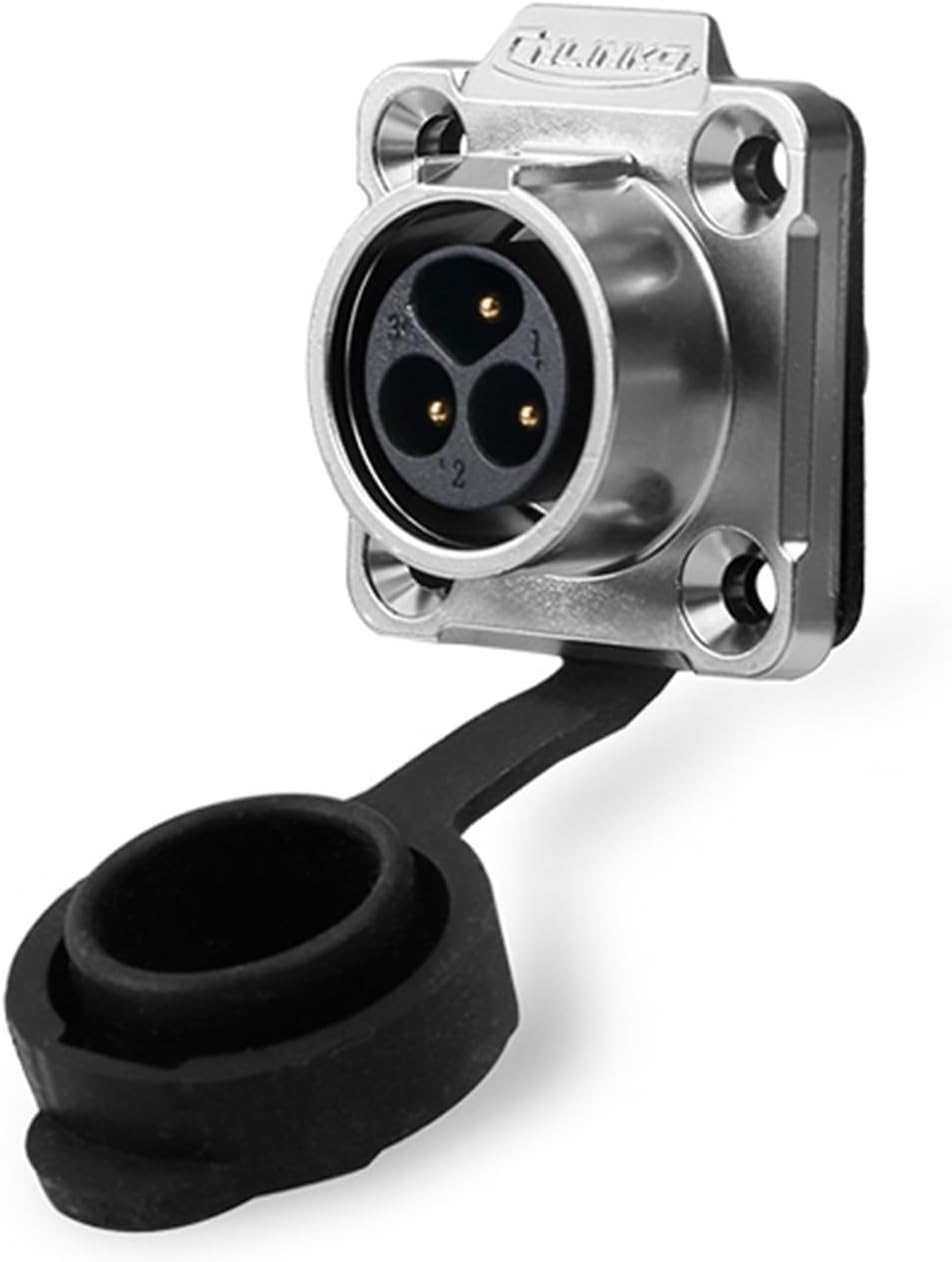

Electrical ConnectorLP16 Power Cable Connector M16 Reverse Mount Female Male Metal Socket for Automotive Machinery Outdoor Use IP68Features:Waterproof DesignThe M16 Waterproof Electrical Connector ensures reliable performance in wet environments, thanks to its robust waterproof design.Panel Mounting Capability Designed for easy panel mounting, this connector provides a secure and convenient solution for wiring installations. MaterialConstructed with plastic and metal, this connector guarantees durability and longevity in use.Versatile Pin OptionsWith pin options ranging from 2 to 9, this connector offers flexibility for various electrical needs and applications. GradeAs an aviation-grade connector, it meets stringent standards for reliability and performance in demanding conditions.==========Hign-concerned Chemical : NoneModel Number : LP-16Cable specification(2~4pin) : 1.0~1.5mm²/18 ~16AWGDiameter range(2~4pin) : Tolerance 7mm~9mmPins : 2 3 4 5 7 8 9 PinInsulation resistance(Min.) : 500 m omegaContact resistance(Max.) : 1~5 m omegaCurrent rating(2~4pin) : 10AOperating voltage (AC.V.rms) : 400VProtection Level : IP68Working temperature : -25 degrees Celsius~+120 degrees CelsiusDurability(Min.) : 500 timesShell&insulated parts : PBT plasticHardware metal : Zinc alloyContact pin : Brass with gold-platedAssembly style : SolderingConnector type : Panel connector/inline connectorCable specification(5~9pin) : 0.34~0.5mm²/22~20AWGDiameter range(5~9pin) : Tolerance 5-7mmCurrent rating(5~9pin) : 5A

• LP16 Power Cable Connector M16 Reverse Mount Female Male Metal Socket for Automotive Machinery Outdoor Use IP68
