Generator Interlock Kit for Eaton Cutler Hammer Type CH Series 150 or 200 amp Panels TAN Breaker ONLY,Horizontal Main Generator Interlock Kit,1 1/2 Inch Spacing Between Main and Branch Breaker

Generator Interlock Kit Compatible With Eaton Cutler Hammer Horizontal Main CH Series TAN Breaker 150 or 200 amp Panels, 1 1/2 Spacing PLEASE NOTE, PLEASE Check the Following Compatibility! • Interlock Kit fit for Eaton/Cutler Hammer Type CH 150 & 200 Amp Panel with Tan generator breaker. • Generator interlock kit ONLY for CH Panels with TAN breakers, NOT for CH Panels with PON breakers!! Only fit for CH Panels with TAN breakers and a depressed area surrounding a left-right throw main breaker. NOT for a flat or raised area surrounding the main breakers. • 1/2 Inch spacing between main circuit breaker and generator circuit breaker! • Please check the model and space of your panels for best fit! Safety Generator Interlock kit • The generator interlock kit is a device designed to allow safe back feeding of a home by a portable generator during a power outage. This eliminates unsafe generator back feeding situations that could potentially electrocute electric power company workers or destroy the generator. When an interlock switch is installed, it prevents the generator circuit breaker and the main circuit breaker from both being on at the same time. An generator interlock kit is a safe and cost-effective way to ensure you're using a portable generator safely. • The generator interlock kit consist of two metal plate and interlock together by three bolts. When move down, the plate stop the generator back feed circuit breaker and allows the main breaker to remain on. When move up, the generator back feed circuit breaker may be turned on but the main circuit breaker is blocked and will remain off. Package Include • 1 x Interlock Plate • 3 x Shoulder Screws • 3 x Hex Nuts • 1 x Drill Bit • 1 x Generator Start-Up Procedure Label • 5 x Remind Label • 2 x Zip Ties • 1 x Instruction

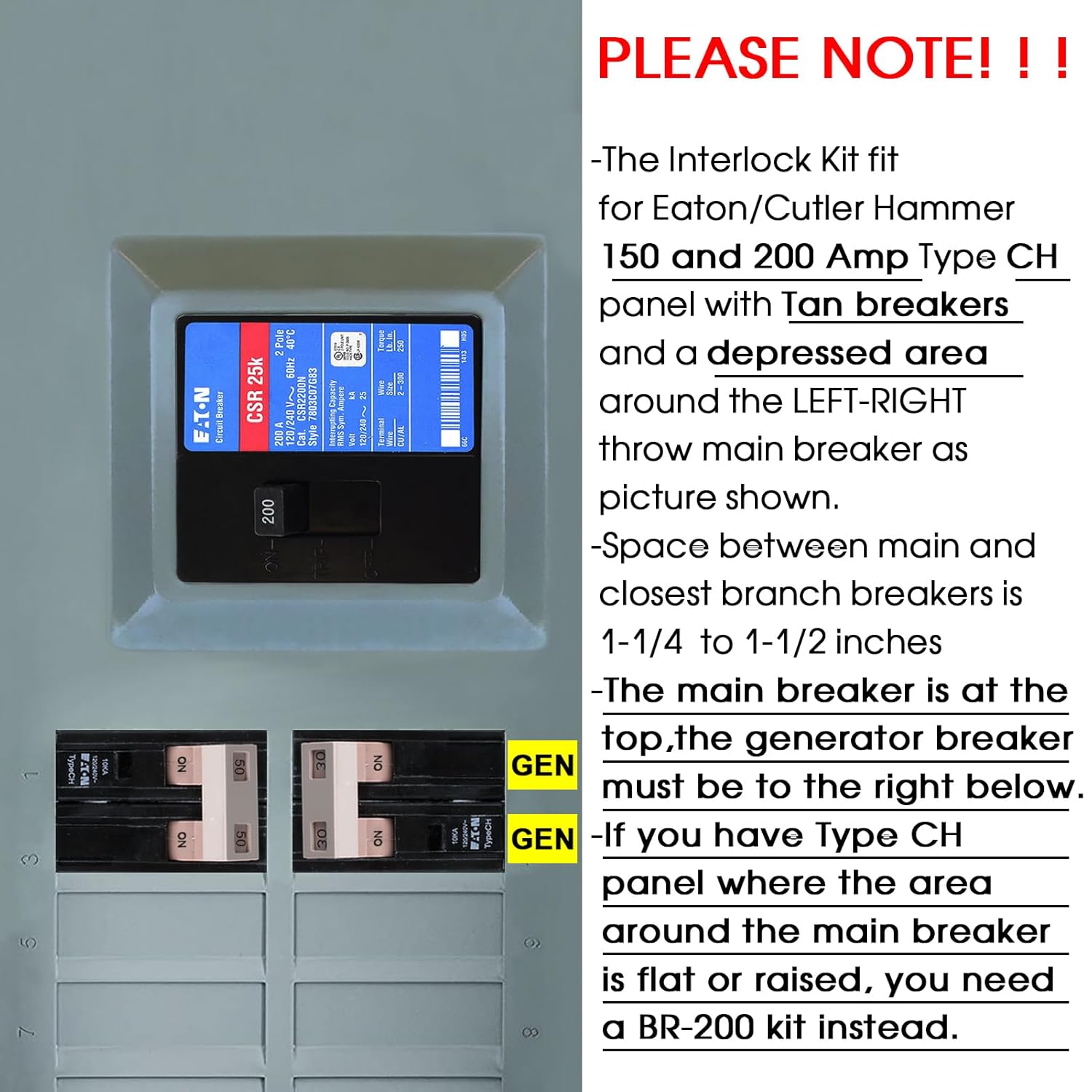

• Compatible Models: Generator interlock kit compatible with Cutler Hammer/Eaton interlock kit for CH series 150 and 200 amp, ONLY for CH panels with TAN breakers where the area of main breaker is depressed, NOT for CH panels with PON breakers where the area of main breaker is flat or raised; Please check the second picture for best fit
• Main & Branch Breaker Space: Single handle horizontal throw left (on) to right (off) 1 1/2 inches spacing between main breaker and branch breakers
• Safe and Reliable: Generator interlock kit for Eaton Cutler Hammer provide a safe and cost-effective way to backfeeding of your home electrical appliances by a portable generator; Ideal solution for power outages or emergency backup power to keep your home geared up and running safely
• Easy Installation: Easy to connect the generator to Eaton/Cutler Hammer electrical panel and ensure the main breaker can never be on while the generator breaker is on; Moves smoothly when in operation and provide safety for your family
• Complete Interlock Kits: 1 x Interlocking Plate, 3 x Shoulder Screws, 3 x Hex Nuts, 1 x Matching Drill Bit, 1 x Generator Start-Up Procedure Labels, 5 x Remind Labels, 2 x Zip Ties, 1 x Instruction
