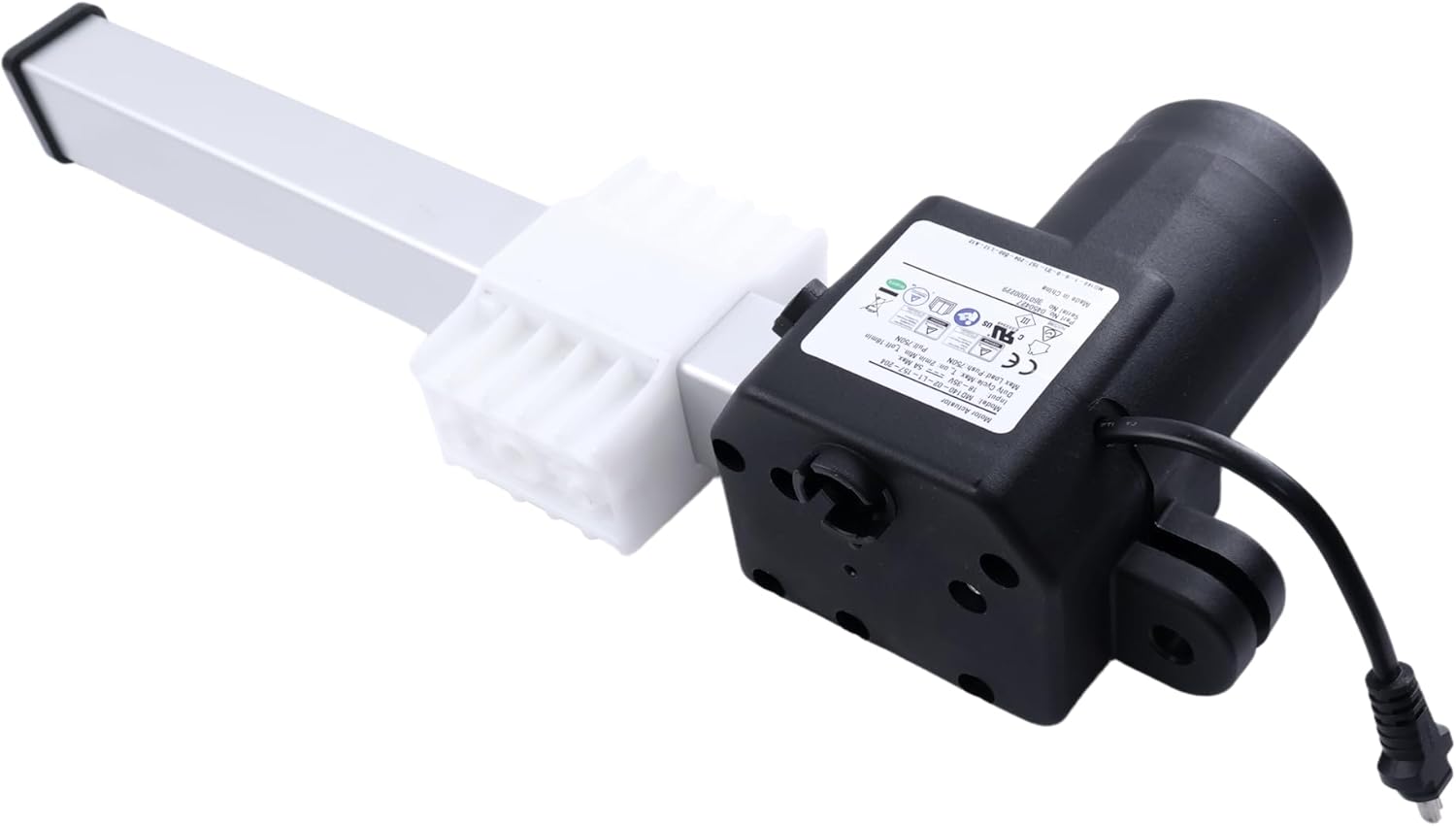

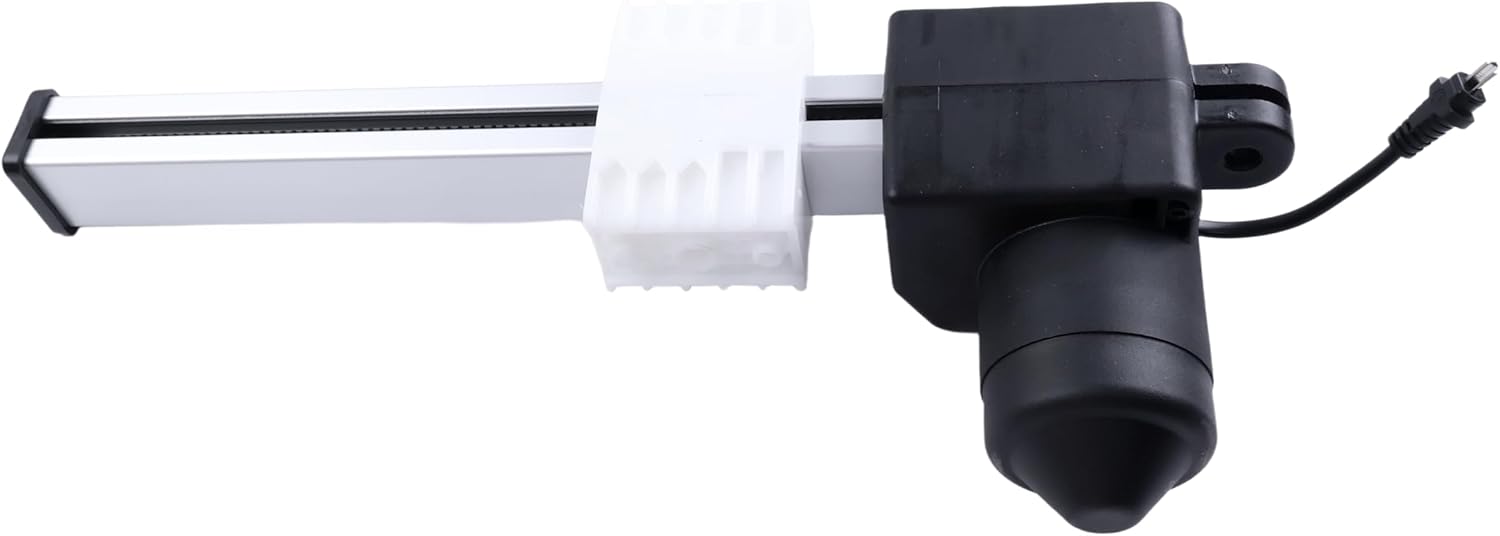

Electric Linear Actuator Motor MD140-02-L1-157-204 Compatible with Limoss 450427 451011 for for Power Recliners Electric Sofas Lift Chairs
4.9 (88 items)
Limited Time SaleUS$47.52 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212101063 | Release Date | 2026/04/06 | List Price | US$31.68 | Model Number | 212101063 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
【Spc】 Stroke: 204 mm/8.03 inches Minimum install dimension: 157 mm/6.18 inchesMax.load: Push: 750NPull: 750NInput：18-35V 5A MaxDuty Cycle：Max 2min ON / Min 18min OFF
- 【Part Number】Replace for 450427 451011 0450427 MD140-02-L1-157-204
- 【Spec】Stroke: 204 mm/8.03 inches； Minimum install dimension: 157 mm/6.18 inches；Max.load: Push: 750N；Pull: 750N；Input：18-35V 5A Max；Duty Cycle：Max 2min ON / Min 18min OFF

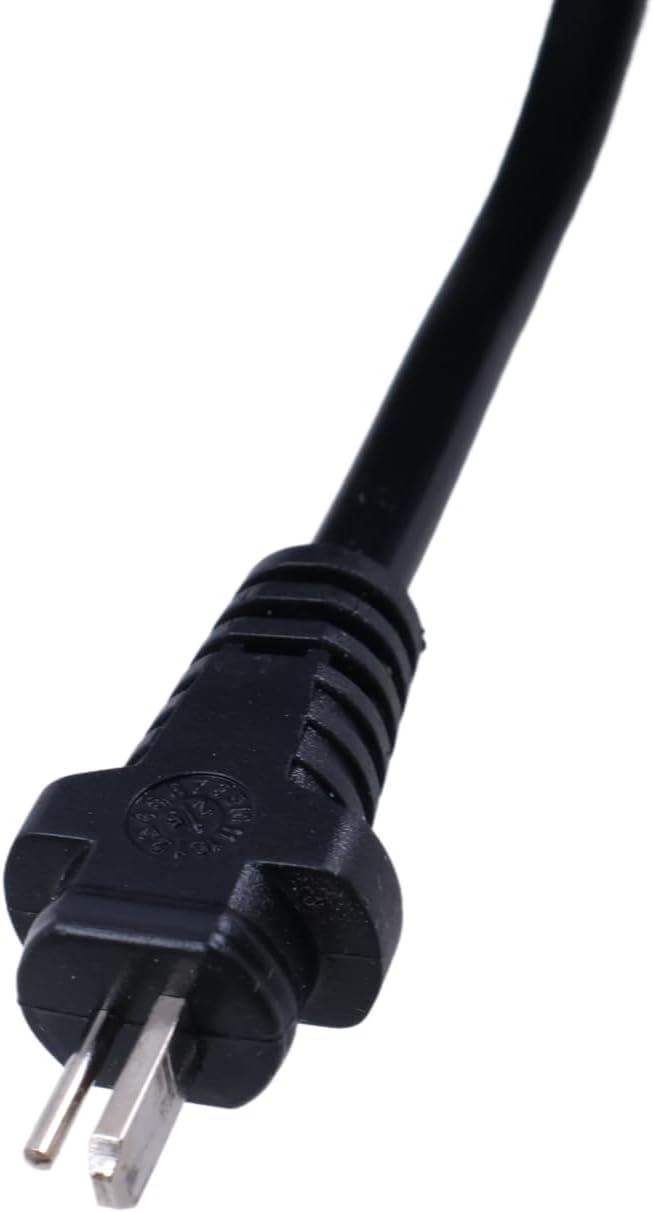

- 【Connection】2-pin flat round plug for the transformer，5-pin plug for the hand control
- 【Package Included】1x Recliner Motor Actuator MD140-02-L1-157-204
- 【Main Applications】Application in Electric lounge chairs，Electric sofas，Massage chairs，Adjustable seat beds and etc. Before purchasing, users are advised to check the existing motor's label to ensure compatibility.
| Color | Black |
|---|---|
| Shape | MD14002L1157204 |
| Brand Name | Holdia |
| Model Name | MD140-02-L1-157-204 |
| Seat Depth | 0.39 inches |
| Unit Count | 1.0 Count |
| Item Weight | 5.9 Pounds |
| Manufacturer | YIXIN |
| Model Number | 450427 |
| Material Type | Aluminum |
| Item Dimensions | 1 x 1 x 1 inches |
| Required Assembly | No |
| Frame Material Type | Plastic |
| Included Components | Power Recliner Motor |
| Item Dimensions D x W x H | 1"D x 1"W x 1"H |
| Maximum Weight Recommendation | 75 Kilograms |
