DC12VGearMotorandPWMDriverKit, 20-400RPMMotorSeries, SpeedReductionMotorwith8mmDShaft(50RPM), GearedMotor
4.5 (114 items)
Limited Time SaleUS$19.95 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212895753 | Release Date | 2026/04/12 | List Price | US$13.30 | Model Number | 212895753 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

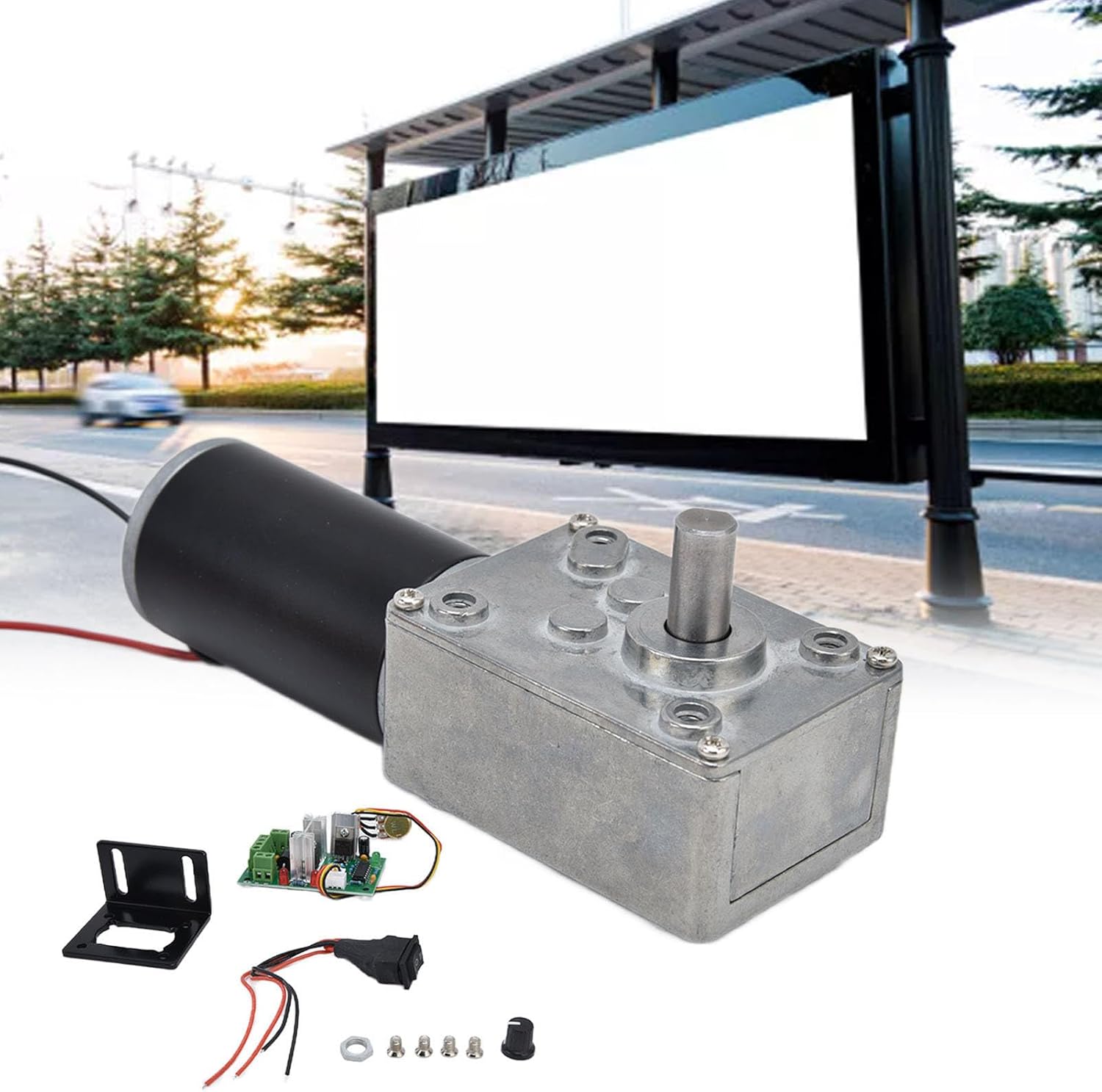

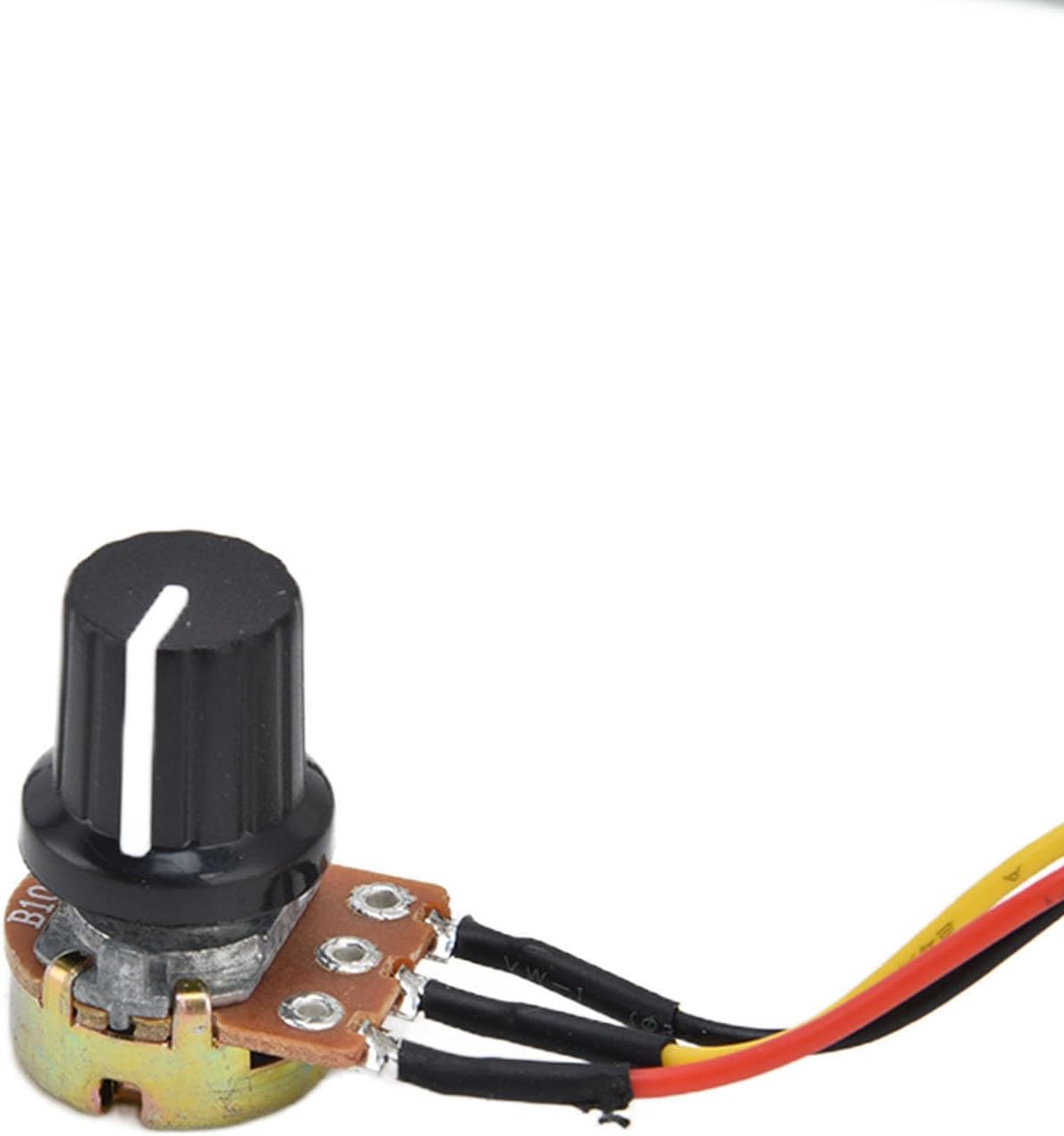

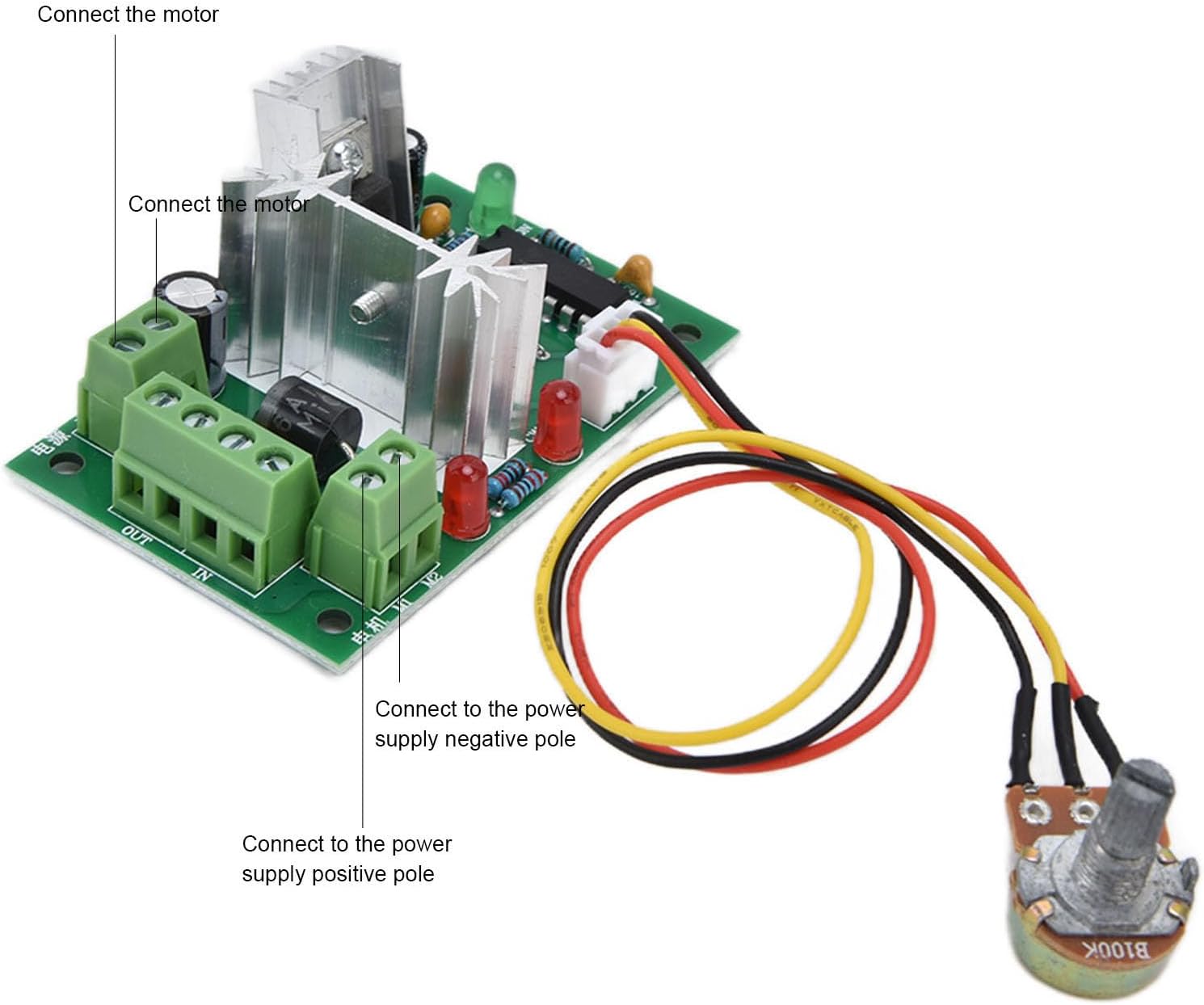

Specification: ItemType: GearedMotor Model: 5840-31ZY WorkingVoltage: 12V ShaftLength: Approx. 15mm / 0.6in Shaft: Approx. 8mm / 0.3in DCmotorregulatorCWandCCWcontrol Model: CCM2 WorkingVoltage: DC10V-30V ControlPower: 12Vx3A=36W, 24Vx3A=72W, ＞24V, maximum120W RatedCurrent: 3A MaximumCurrent: 5A PWMPulseWidthAdjustmentRange: 5%-95% Potentiometer: valueB10K, wirelengthisapprox. 20cm / 7.9in, openingapprox. 8mm / 0.3in OutputVoltage: Aboutoftheinputvoltage Drive: Approx. 74x47x28mm / 2.9x1.9x1.1in Potentiometerisusedforspeedregulation PackageList: 1xMotor 1xGovernor 1xCWandCCW 1xKnob 1xWasher 1xBracket 4xMountingScrew Note: 1. Whensolderingisrequiredonthepositiveandnegativemotorterminalsofthepowersupply, thetemperatureofthesolderingironis340℃±40℃, andtheheatingtimeislessthan3s. 2. Themaximumbearingcapacityofthegearis70KG, blockingisforbidden, andthemotormaybeburntifitisblockedforlongtime. 3. Wheninstallingthemotor, ifthescrewistoolong, itwillcausebetweenthemotorandtherotor, therebyaffectingthecharacteristics.

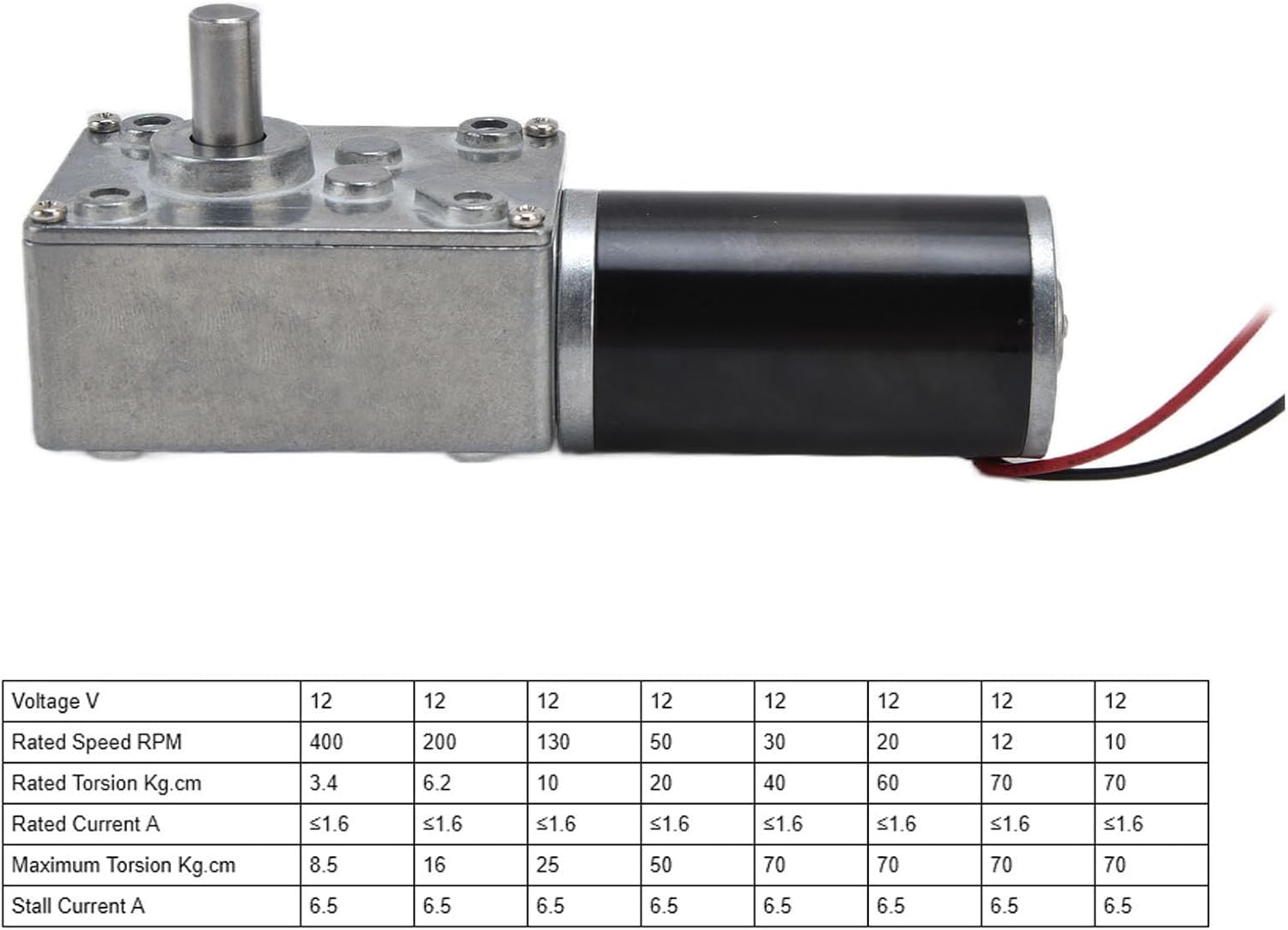

- 12V DC worm gear motor delivers high torsion output for industrial applications. Turbo worm speed reduction mechanism provides strong torque at low RPM for curtain machines and billboard equipment. Fits 12V systems with 200RPM rated speed.
- Self locking design holds output shaft position when power is off. This 12V geared motor cannot be back-driven, making it safe for window openers and vending machines where load must stay in place without power.

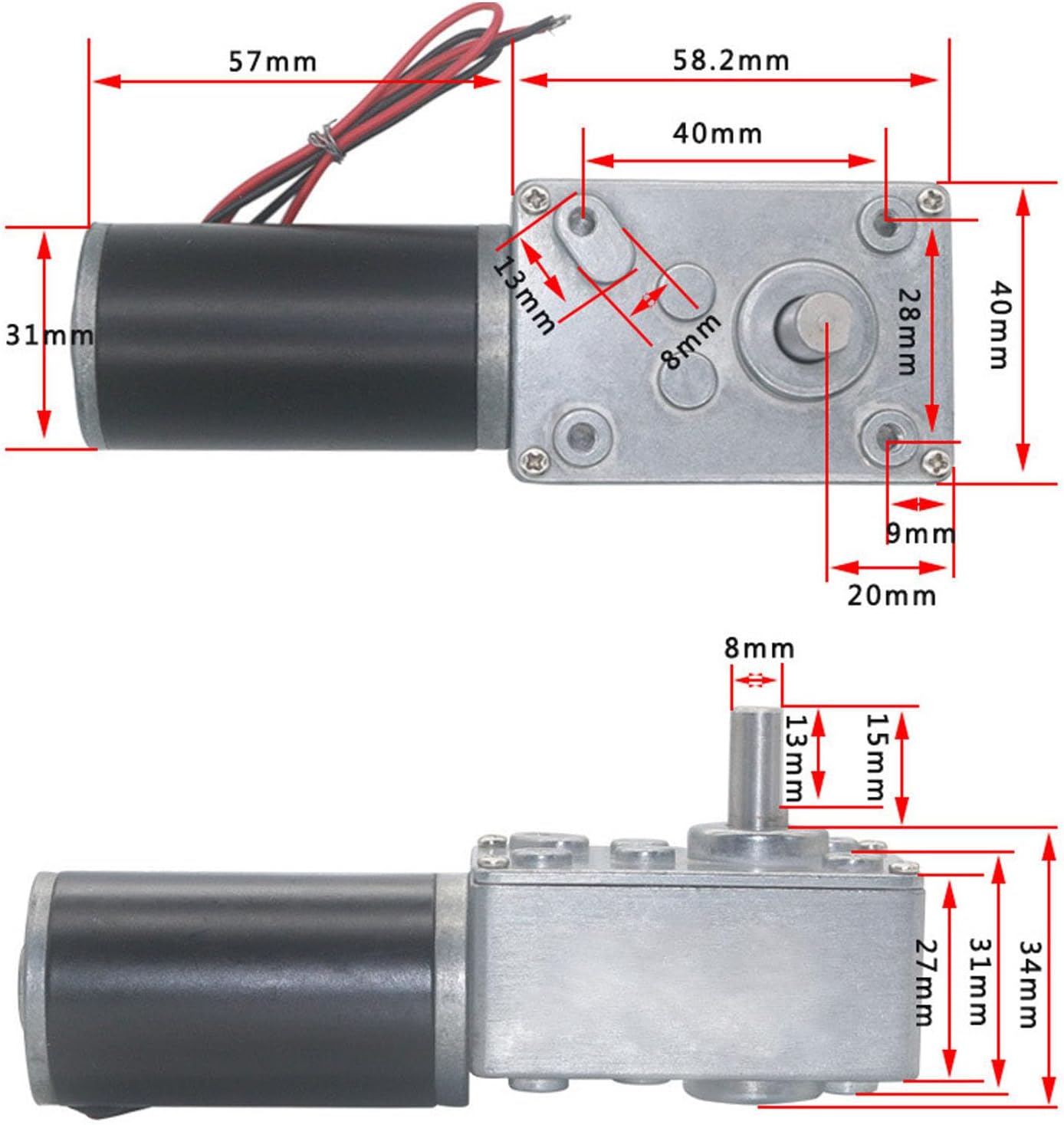

- Full metal shell construction with brass turbine worm gear and double ball bearings. All-metal housing provides thermal conductivity and corrosion resistance. Motor body: 31mm diameter x 57mm length.
- Heat treated gears with ground finish and imported lubricating oil reduce friction. Stainless steel 8mm output shaft with high accuracy structure ensures smooth running. Rated torque: up to 7NM.
- Works with speed governor for reversible CW/CCW operation. Suitable for paper shredders, copying machines, bank equipment, and safe boxes. Ideal for automation projects requiring steady speed and position holding.
| Speed | 50 RPM |
|---|---|
| Voltage | 12 Volts |
| Brand Name | POCREATION |
| Horsepower | 72 Watts |
| Model Name | gear |
| Manufacturer | POCREATION |
| Material Type | Metal,Stainless,Steel |
