ATS MG- 3 Milling Machine Guard | OSHA Compliant Ram Mount Safety Shield for Bridgeport Mills | Articulating Arm & Lexan | Made in USA

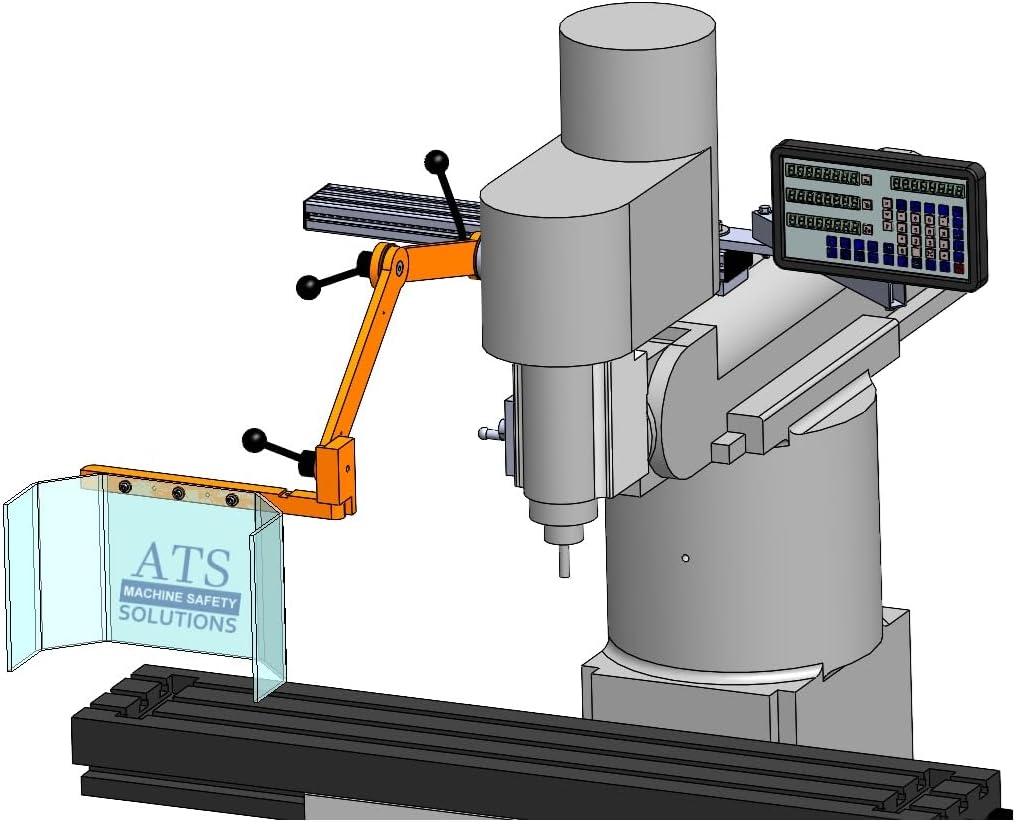

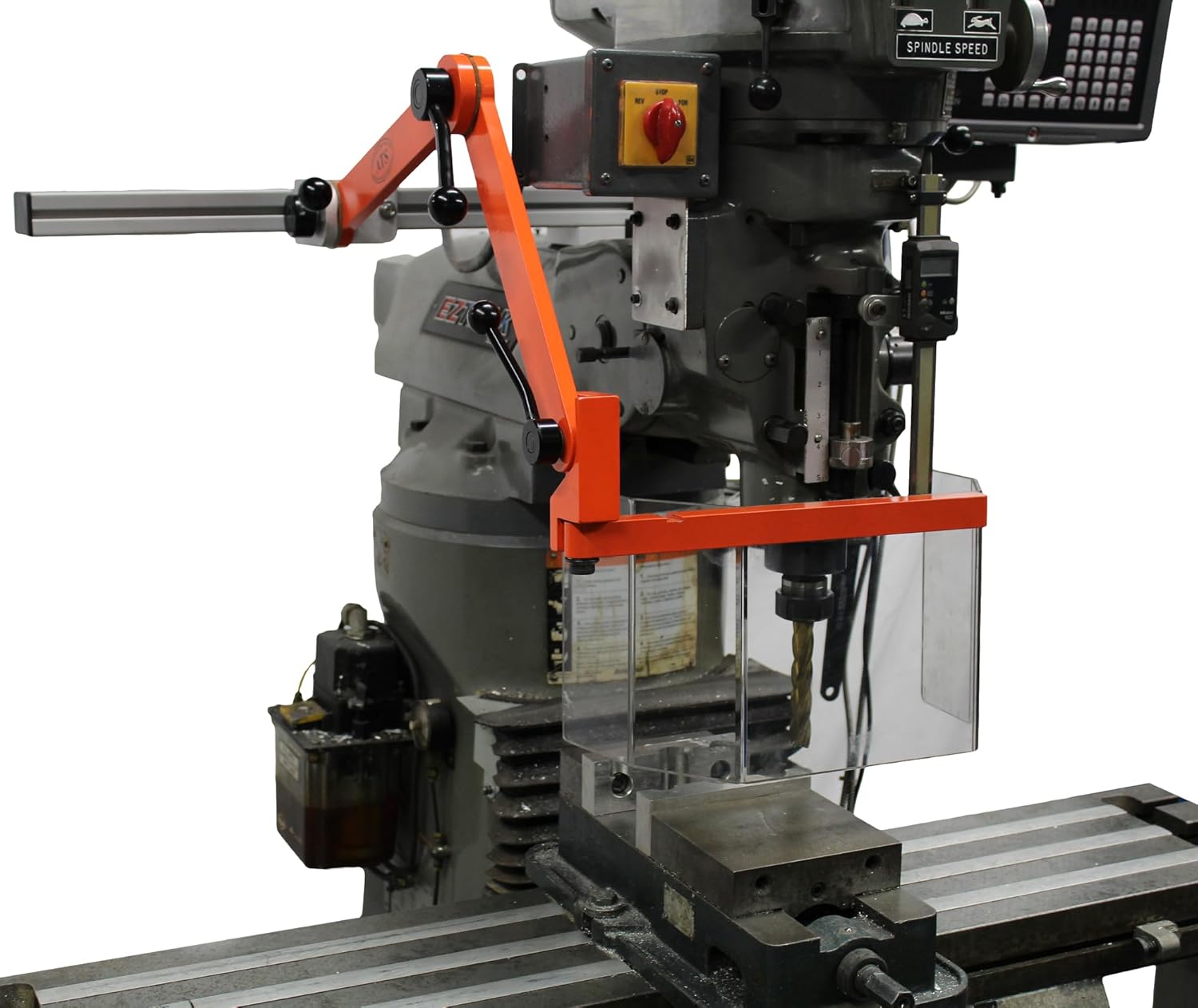

ATS Machine Safety Solutions - Ram Mount Milling Machine Safety Guard (MG-3)The MG-3 is ATS Machine Safety Solutions' ram-mount milling machine chip guard for Bridgeport Series I and most comparable knee mills. It mounts to the ram rather than the head, leaving the quill, drawbar, and head completely unobstructed. The articulating arm and 360-degree adjustable handles allow precise shield positioning for any operation, and the bolt-on design requires no drilling into the machine.SpecificationsMount type: Ram mountPrimary compatibility: Bridgeport Series I and most knee millsShield: 1/4 inch thick polycarbonate (Lexan), swings 180 degrees openStandard shield size: 9 inchesFrame: CNC billet aluminum and industrial T-slot extrusionArm: Steel, articulating, 360-degree orientation, locks in placeFinish: Safety orange powder coatInterlock: Standard model has no interlock. Interlocked version: MG-3-SK1Country of origin: Made in USAHow to InstallStep 1: Identify the ram mounting location on your millStep 2: Attach the mounting bracket to the ram using supplied hardwareStep 3: Connect the articulating arm assembly to the bracketStep 4: Attach the shield assembly to the arm extrusionStep 5: Adjust arm and shield over the cutter area and tighten handlesFrequently Asked QuestionsWhat is the difference between MG-2 and MG-3? MG-2 mounts to the head at the quill feed plate. MG-3 mounts to the ram, keeping the head and quill area completely clear.Will this fit my non-Bridgeport knee mill? ATS provides hardware for most common ram profiles. Contact ATS with your machine make and model to confirm before ordering.Does installation require drilling? No. All mounting is bolt-on using supplied hardware.Is there an interlocked version? Yes. MG-3-SK1 includes a safety interlock switch. Same mounting geometry as MG-3.Can I add accessories to the T-slot? Yes. Standard T-slot accessories such as work lights and coolant nozzles are compatible with the extrusion.

• Shields operators from chips and coolant while keeping quill, drawbar, and head accessible: Ram-mount leaves the entire head area open for quill operations. Addresses OSHA 1910.212 for milling machines. Fits Bridgeport and most knee mills.
• Articulating arm locks in any position so you set it once and work: Heavy-duty steel handles orient 360 degrees and hold position under continuous milling. Front arm swings 180 degrees open for setup and part changes.
• 6061 billet aluminum frame with PPG OSHA Safety Orange powder coat: T-slot extrusion handles coolant-heavy production environments without corroding. T-slot accepts work lights and coolant nozzle accessories.
• Ready to install on most Bridgeport and compatible ram profiles: ATS provides hardware for common ram geometries. Contact ATS with your machine make and model if non-standard. For head-mount installation, see the MG-2 instead.
• Backed by a 1-year warranty, and only the Lexan shield ever needs replacing: The 6061 aluminum frame outlasts the mill and is a permanent fixture. Replacement Lexan shields stocked at ATS. Interlocked version MG-3-SK1 also available.
