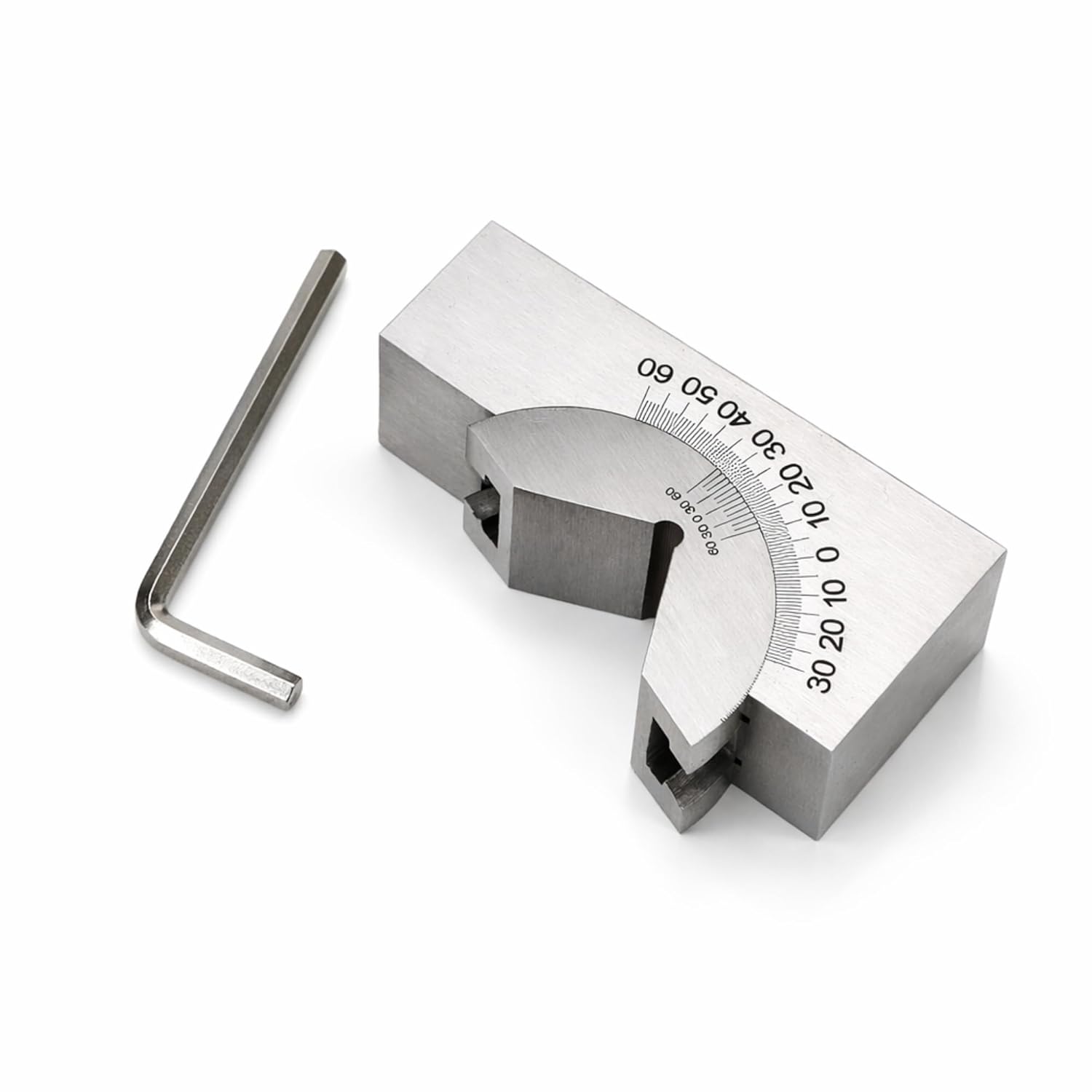

Adjustable Angle V Block Milling Gauge Set, Stainless Steel Micro High Precision Setup with Wrench, 0–60° AP25 for Lathe Machinist Tool, Magnetic Machining Clamp Finder

Specification: Material: Stainless steel Dimensions: Approx. 75 × 25 × 36 mm / 3 × 1 × 1.4 in Color: As shown Use Method: Loosen the screws, then rotate the V-shaped block along the guide rail base to find the desired angle. Use the vernier cursor for readings: – The main scale displays whole degrees (1°). – The vernier scale provides fine readings in 10' increments. When the “0” line on the vernier aligns with the “0” on the main scale, surface A is parallel to the reference plane and surface B is perpendicular. If the vernier “0” is to the right of the main scale “0,” read degrees and minutes on the right side (counterclockwise rotation). If the vernier “0” is to the left, read from the left side (clockwise rotation). Adjust to the target angle and tighten the V-block and the base to lock it in place. Package List: 1 × Adjustable angle block 1 × Wrench

• Adjustable Angle Range 0–60°: The micro adjustable angle V block allows precise angle setting from 0 to 60 degrees by locking the hex screw at the base. The movable block with vernier-style markings enables smooth, stepless angle adjustment and secure positioning for accurate machining setups.
• High Precision Machining Accuracy: Features precision-ground working surfaces with parallelism and perpendicularity accuracy up to 0.01mm. Hardened to approximately HRC 50–55, ensuring stable alignment and reliable performance for detailed milling, drilling, and setup applications.
• Durable Stainless Steel Construction: Made from high-quality stainless steel with surface hardening and plated treatment for improved wear resistance and corrosion protection. Built for long-term use in demanding workshops and machining environments.
• Easy Operation & Secure Setup: Simple to use—adjust the angle using the cursor indicator, then lock firmly with screws. Designed for efficient setup on milling machines, drill presses, planers, and grinders, helping improve workflow accuracy and consistency.
• Wide Application for Machining Tasks: Suitable for aligning, marking, and processing workpieces, including angled machining, slope processing, and inclined hole drilling. Compatible with various machine tools and fixtures, making it ideal for machinists, toolmakers, and precision setup work.
