0.75'' NPT Industrial Bag Filter Housing, #3 Water Filter with 0.97 ft Filtration Area & 150 PSI Max, 304 Stainless Steel Sock Filter for Industrial Liquid Purification

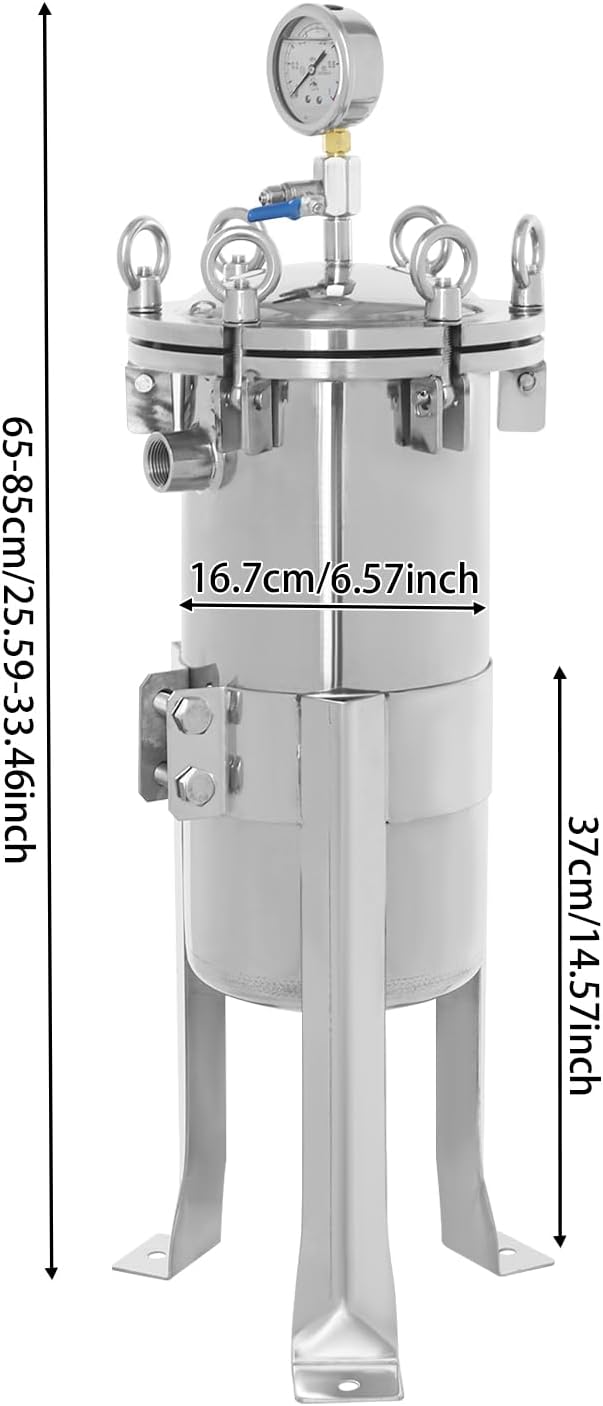

ApplicationIt is suitable for water treatment, ink, oil, beverage industries, and other fields where filtration is required, serving professionals and users needing efficient liquid purification.SpecificationsMaterial: 304 Stainless Steel, MetalProcess: PolishingMount Type: FloorstandingAssembly Required: YesStyle: ModernColor: SilverFiltration Area: 0.09 m²/ 0.97 ft²Reference Flow Rate: 0-6 Ton/0-13227.74 lbs/HInlet/Outlet Female Thread Size: NPT 3/4 inMesh of the Bag: 5 μmPressure Gauge Accuracy: 2.5 LevelAmbient Temperature: -20~80℃/-4~176℉Product Size(D*H): 16.7*65-85 cm/6.57*25.59-33.46 inPackage Size: 75*26*26 cm/29.53*10.24*10.24 inGross Weight: 10 kg/22.05 lbsNet Weight: 9.50 kg/20.94 lbsPackage Included1* 304 Stainless Steel Bag FilterOther Accessories For UseNotes1. Please check the style and size before purchasing.2. Please note that when the unit is not in use at temperatures below 32°F, the internal filter media must be drained to prevent damage.3. The filter bag can be reused after cleaning, but replacement is recommended after multiple uses. This product contains only one 5μm filter bag.4. Please note that this product requires only water cleaning. For industries with higher hygiene requirements, cleaning with alcohol (not included) is sufficient.5. Before use, verify that the filter's working pressure and temperature range meet the on-site conditions to prevent equipment damage or safety hazards caused by overpressure or overtemperature use.6. Please allow the slight color difference caused by the shooting light and a 1-3cm error due to manual measurement and make sure you do not mind before ordering.

• High-Efficiency Filtration with 0.97 ft Area: Featuring a large 0.97 ft² (0.09 m²) filtration area, this bag filter housing maximizes flow rate while capturing fine particles down to 5 microns. Liquid flows under pressure through the #1 filter bag, trapping impurities while delivering clear, purified output for water treatment, ink filtration, or edible oil refining

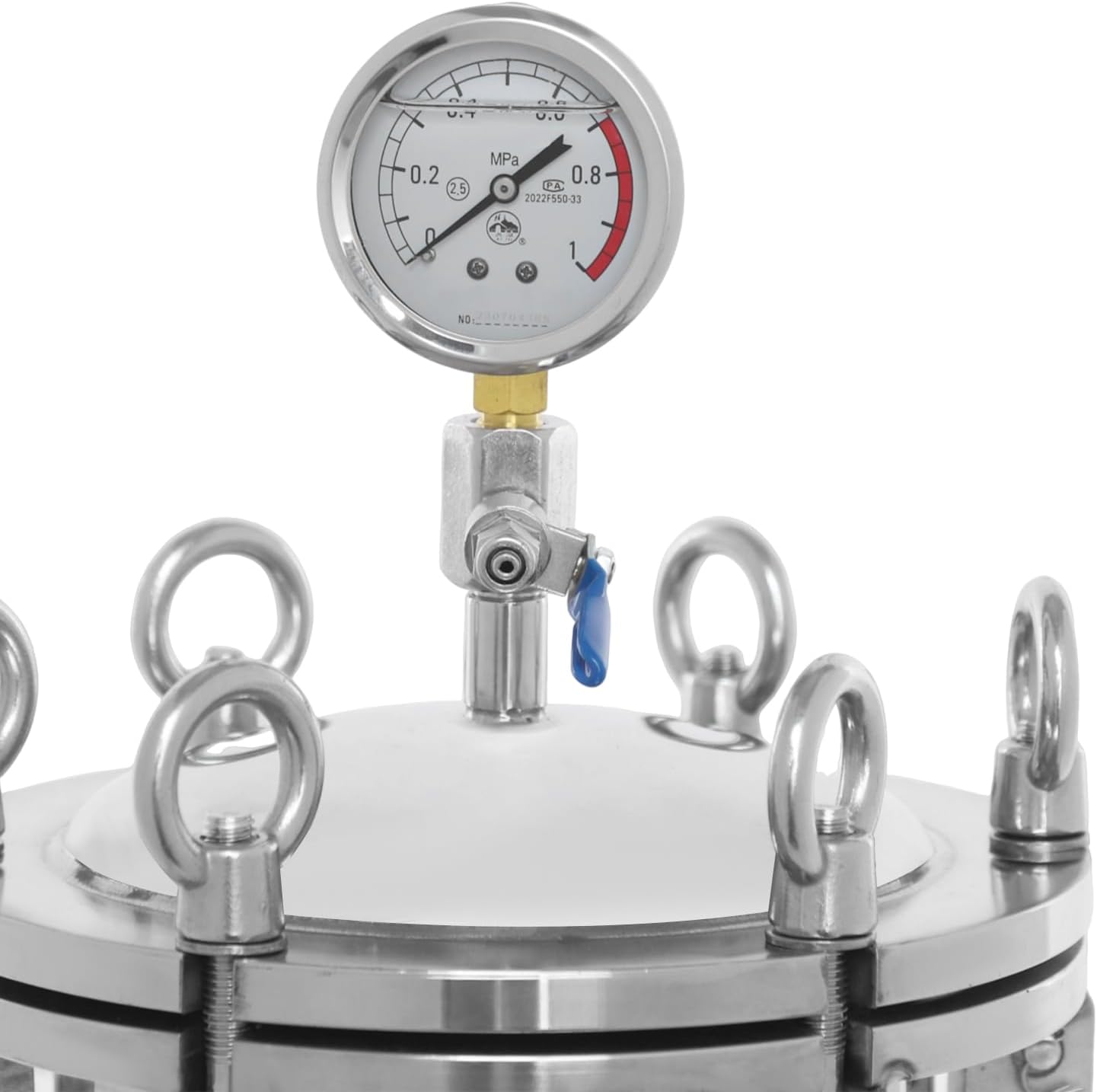

• Real-Time Pressure Monitoring & Safety Release: Includes a shock-resistant pressure gauge (2.5-level accuracy, 1.0MPa range) for instant internal pressure checks. Plus, the manual exhaust valve lets you safely release excess pressure, protecting your system and extending equipment life
• Industrial-Grade 304 Stainless Steel Construction: Crafted from mirror-polished 304 stainless steel, this bag filter housing resists rust, deformation, and chemical corrosion even in harsh environments. The smooth interior minimizes residue buildup, making cleaning effortless and ensuring years of reliable service
• Fully Adjustable Height & Secure Mounting: Equipped with 3 robust, height-adjustable support feet and pre-drilled mounting holes, you can easily align the inlet/outlet (NPT 0.75) with your existing pipes. Lock it firmly to the floor for vibration-free, stable operation in industrial plants or mobile filtration units
• Leak-Proof Precision & Extended Bag Life: The dedicated stainless steel mesh basket fully supports the filter bag, preventing collapse under pressure. Combined with a precision-sealed lid and minimal side leakage risk, it ensures consistent filtration accuracy and reduces bag wear, saving you replacement costs over time
• Versatile Industrial Applications: Suitable for water treatment, ink filtration, oil processing, beverage industries, and other fields requiring efficient liquid purification and particle removal in professional settings
• High Flow Rate Capacity: Supports a reference flow rate of 0-6 tons per hour (0-13227.74 lbs/H), making it capable of handling substantial liquid volumes for demanding industrial filtration operations
